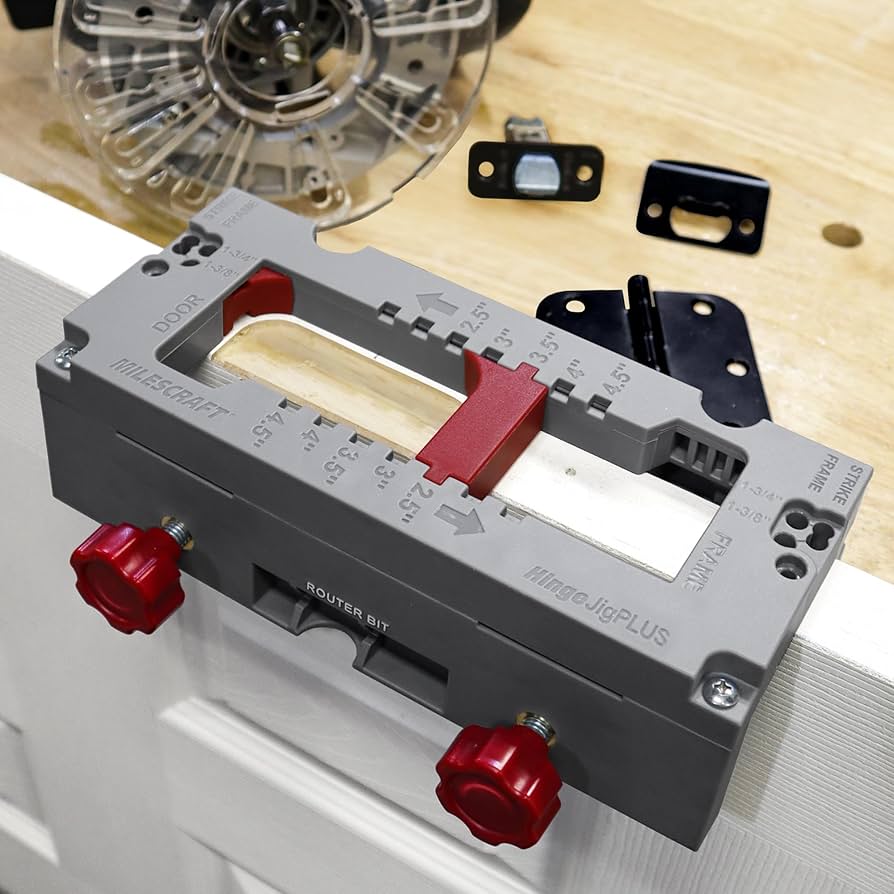

Milescraft, 1229 HingeJigPLUS w/PinDoctor

Self-Clamping Door and Frame Hinge, Latch, and Strike Plate Jig

Description:

The HingeJigPLUS™, by Milescraft, is a one-stop solution for door installation work. The jig routs and installs door and jamb / frame hinges, latches, and strike plate mortises quickly and accurately.  The included bonus PinDoctor™ even assists in removing your old door. The dual-clamping design of the HingeJigPLUS™ mounts quickly and holds firm to ensure cuts are clean and accurate. No need for screws or nails which can damage your door. Built for North American style hardware.

Self-Clamping

• Padded, dual self-clamping design sets up quickly and prevents damage to doors caused by mounting screws or nails

Fits All Doors

• Adjustable settings allow jig to be used on all standard size 1-3/8” and 1-3/4” thick doors

Works with Multiple Hinge Sizes

• Rout door hinge mortises for 2-1/2” to 4-1/2” hinges

Compatible with Frame / Jamb

• Reconfigure HingeJigPLUS™ to rout hinges and strike plates on frame / jamb

Rout Different Radiuses

• Cut professional hinge mortises with ¼”, 5/8”, or square corners. (Chisel Required)

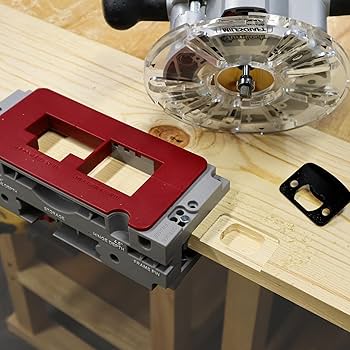

Drop in Latch Templates

• Includes additional templates to rout common door latch mortises sized 1” x 2-1/4” , 1-1/8” x 2-1/4” , and 1-1/8” x 2-3/4”

Drop in Strike Plate Templates

• Rout 1-1/2” x 2-1/4” and 1-1/8” x 2-3/4” strike plates

Bonus PinDoctor™

• Included hinge pin removal tool helps remove existing doors

Built in Depth Setting

• Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges

Self-Guided Router Bit

• Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises

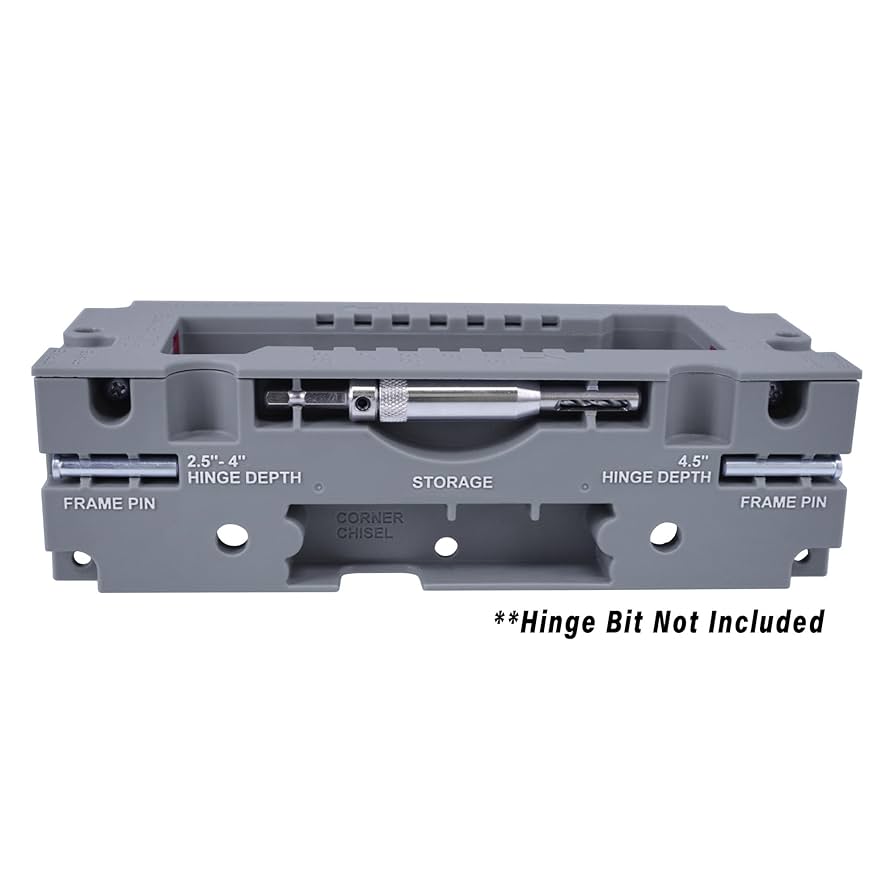

Built-in Storage

• Contains built in storage compartments for router bit and available self-centering hinge bit (not included) for convenient retrieval
