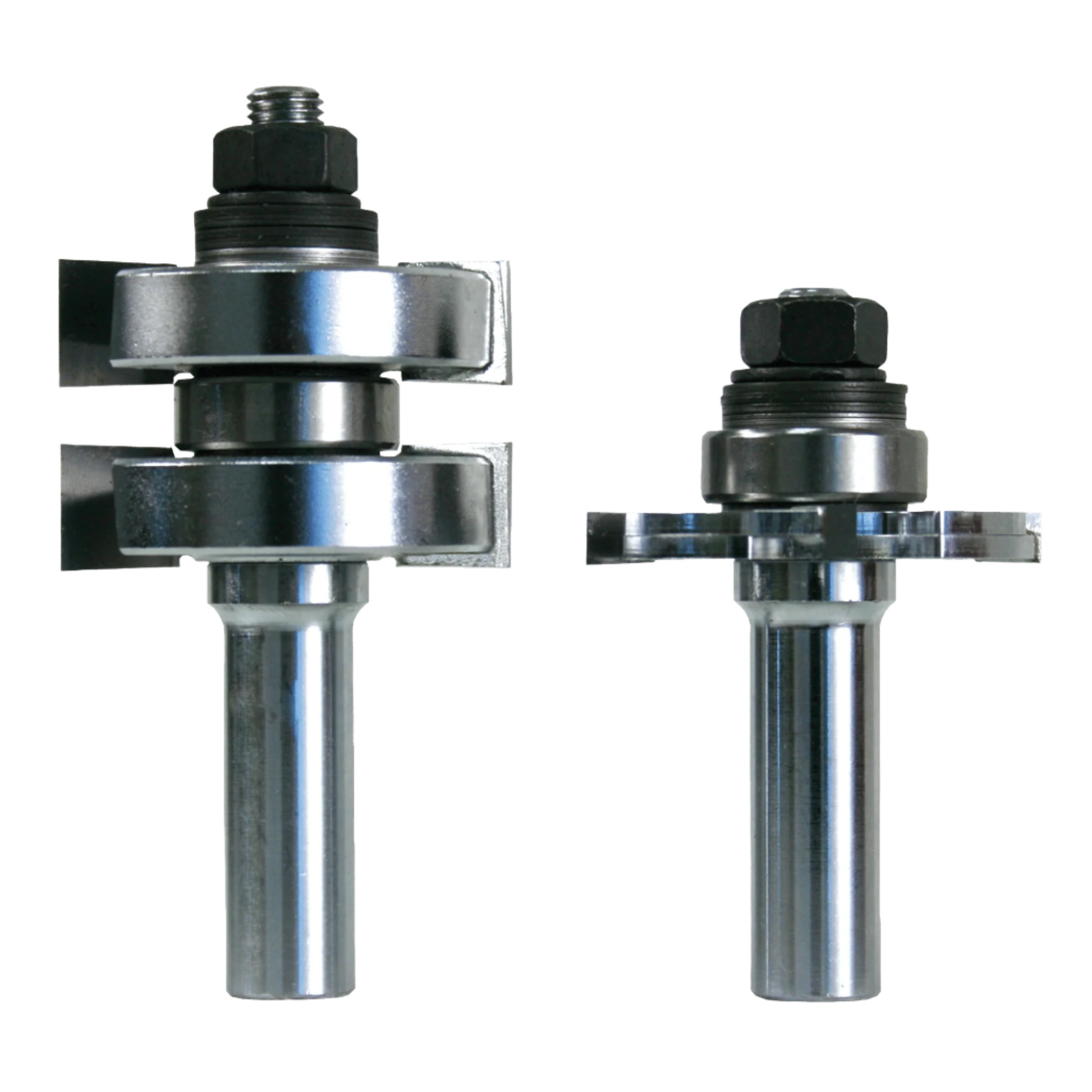

Freud, 99-036 Adjustable Tongue & Groove Router Bits Set 1/2'' Shank 14670

Freud, 99-036 Adjustable Tongue & Groove Router Bit Set 1/2'' Shank 14670

Description:

• Are you looking to make Shaker style cabinet doors and furniture? Look no further than the Freud, 99-036 Adjustable Tongue & Groove Router Bit Set 1/2'' Shank. This exclusive Freud designed router bit set has everything you need to produce perfectly fitted tongue and groove joints easily and efficiently. It will cut all composite materials, plywood, hardwood and softwood. The Router bit set comes with an adjustable cutters that you can tailor your stock thickness from 1/2" to 1-1/4" and its groove widths are adjustable from 7/32" to 3/8". The Freud 99-036 has opposing shear angles on the tongue cutter that allow for a flawless finish each cut.

Application:

• Producing perfectly fitted tongue and groove joints for projects such as Shaker style cabinet doors
• Cuts all composite materials, plywood, hardwood and softwood
• Use on table-mounted portable routers

Features:

• Exclusive design produces perfectly fitted tongue and groove joints
• Ideal for Shaker style doors and furniture

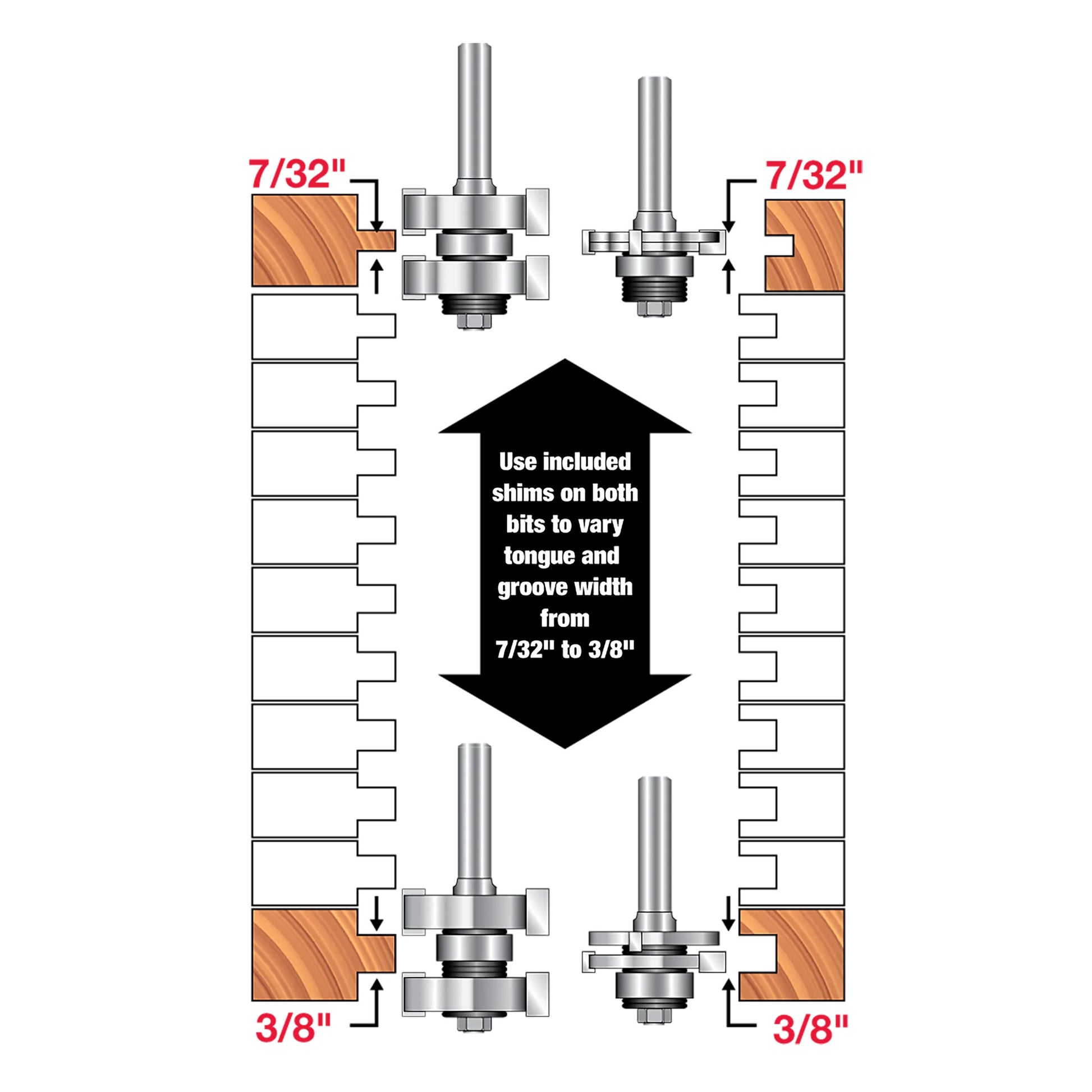

• Ideal for stock thickness of 1/2" to 1-1/4" and groove widths of 7/32" to 3/8"
• Opposing shear angles of the tongue cutter ensure a flawless finish

Specifications:

Tongue Bit:

• Overall Dia. (D) 1-3/4"
• Bearing Dia. (B) 7/8"
• Cut Height (h) 7/32" ~ 3/8"
• Shank Dia. (A) 1/2"
• Overall Length (H) 3-1/4"

Groove Bit:

• Overall Dia. (D) 1-3/4"
• Bearing Dia. (B) 7/8"
• Cut Height (h) 13/16" ~ 1-11/32"
• Shank Dia. (A) 1/2"
• Overall Length (H) 2-11/16"
