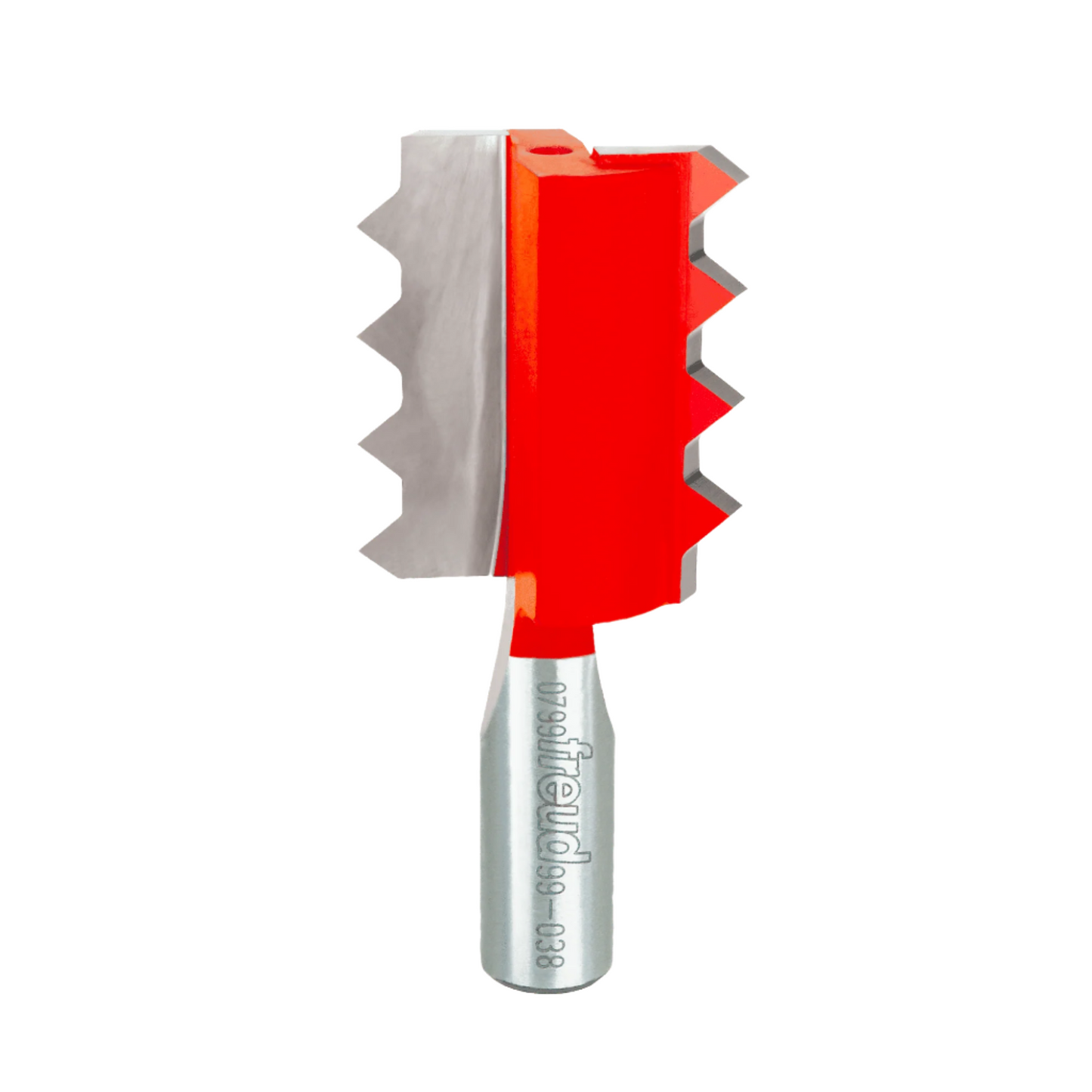

Freud, 99-038 Raised Panel 'V' Joint Bit 1/2'' Shank 14022

Freud, 99-038 Raised Panel 'V' Joint Bit 1/2'' Shank 14022

Application:

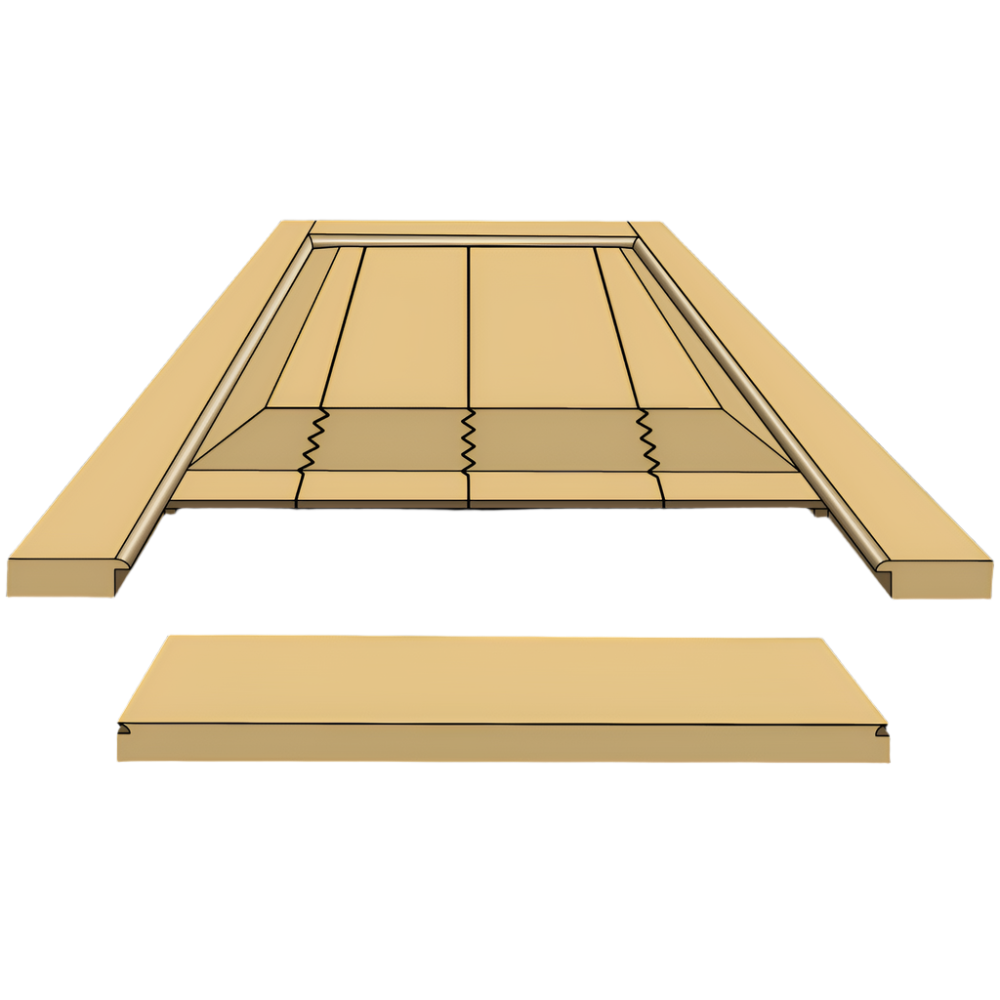

• Producing strong, attractive glue joint raised panels
• Cuts all composite materials, plywood, hardwood and softwood
• Use on hand-held and table-mounted portable routers

Features:

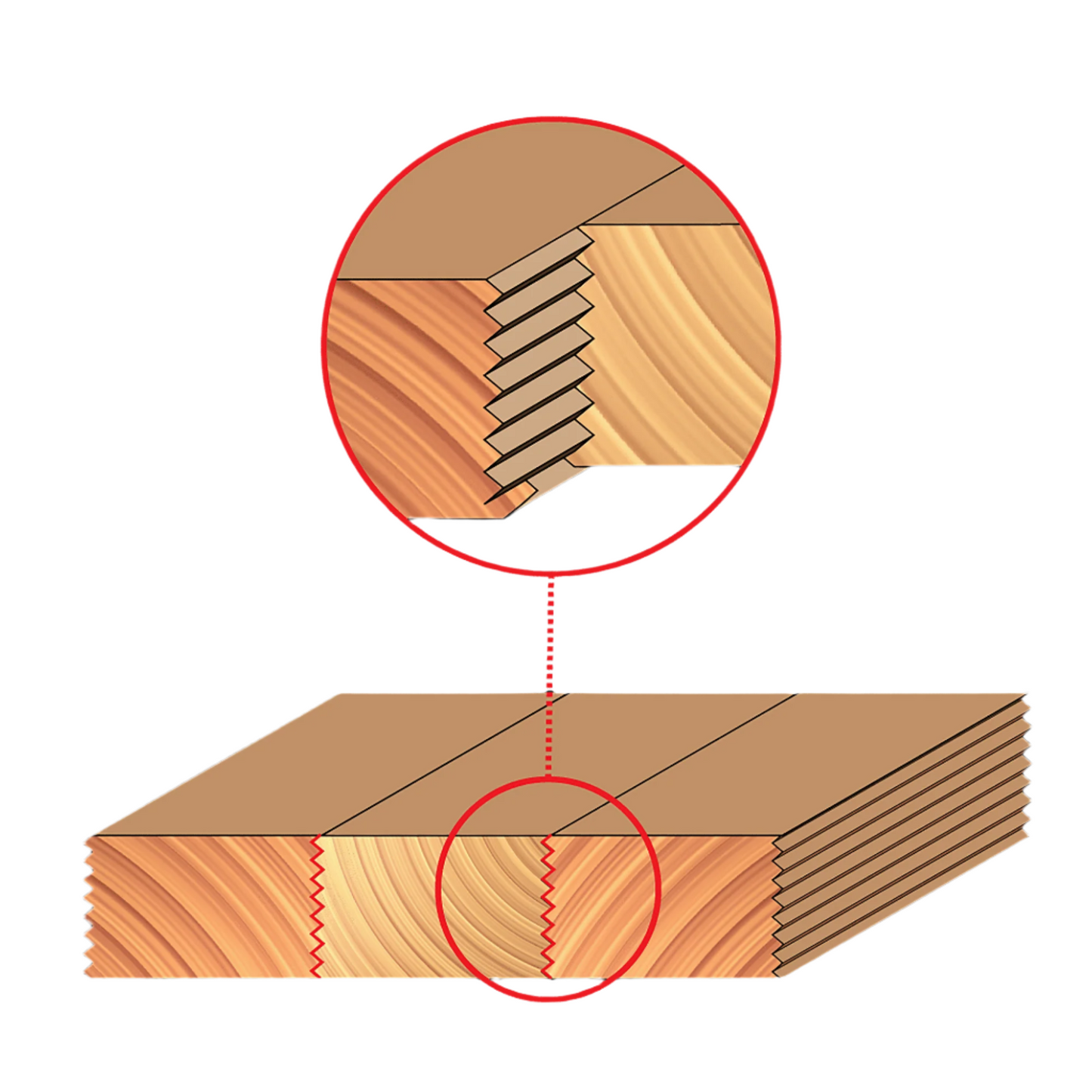

• Produces a strong joint for edge gluing boards for raised panels

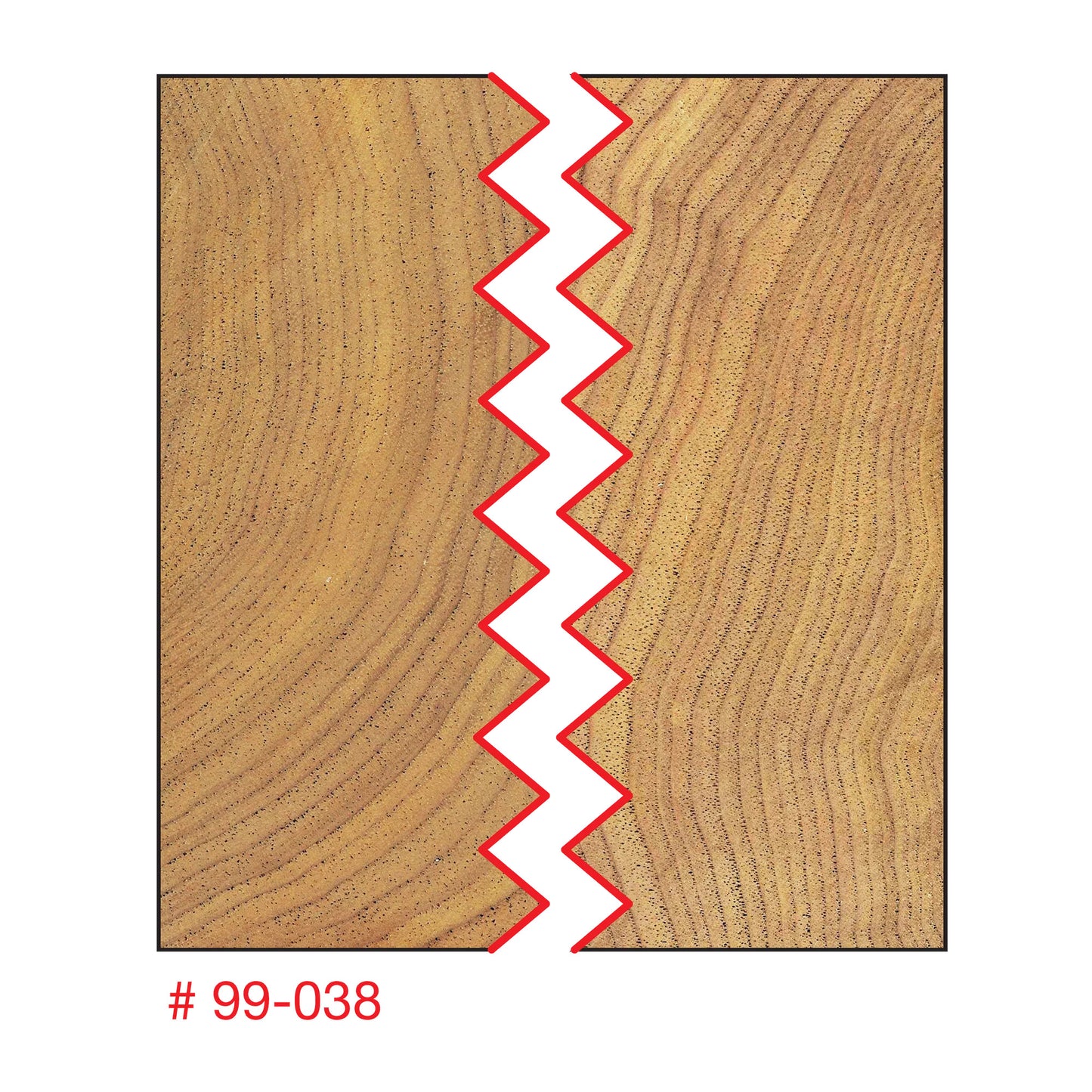

• Joining surfaces are at an angle, not vertical, so you won"t see dark lines like those created by standard finger joint bits
• Bit does not have to be centered in the wood - simply raise or lower the bit 3/32" to rout the mating edge

Specifications:

• Overall Dia. (D) 1-3/8"
• Carbide Height (h) 1-37/64"
• Minor Height 3/16"
• Angle (d) 80°
• Shank Dia. (A) 1/2"
• Overall Length (H) 3-1/16"
