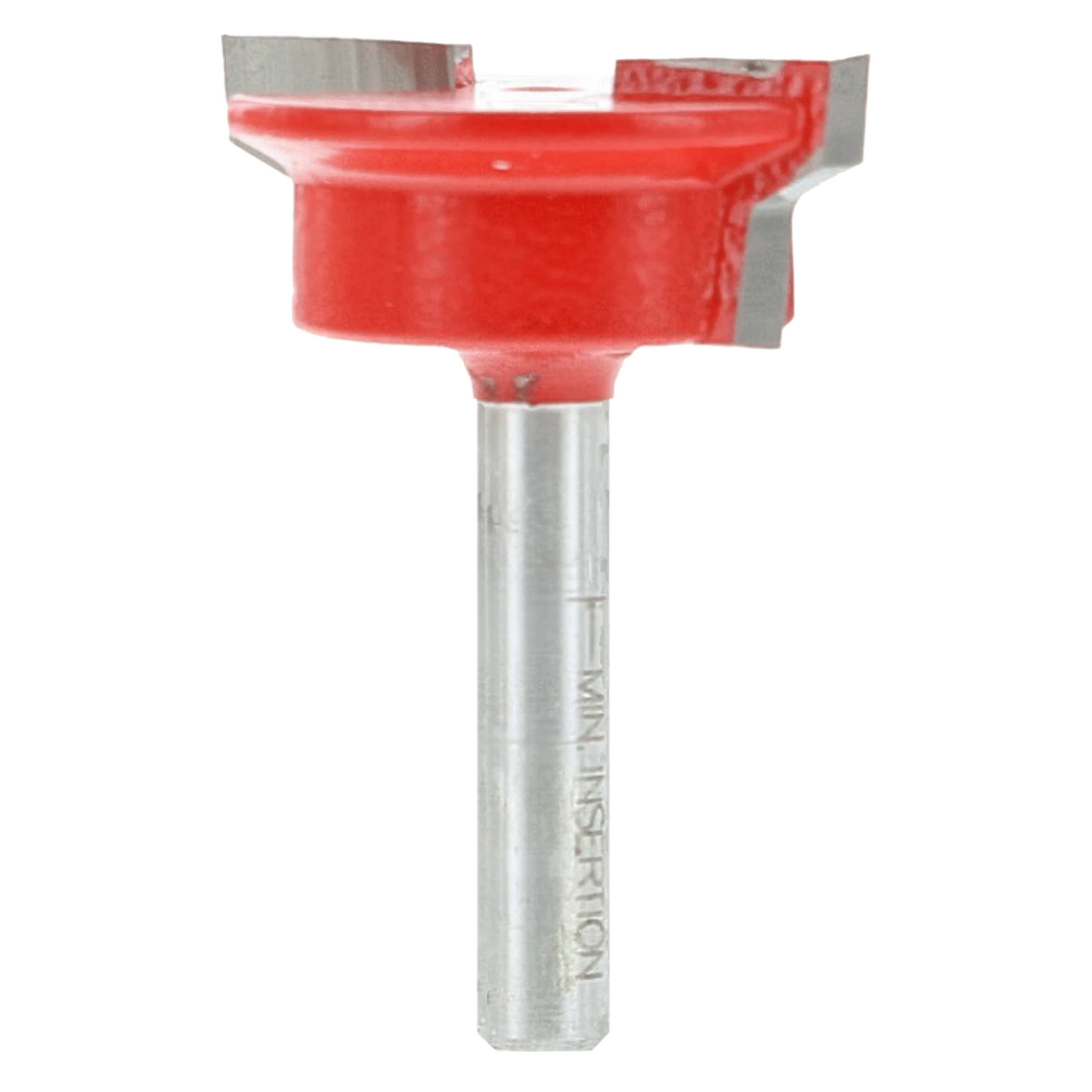

Freud, 99-239 Drawer Lock Bit 1/4'' Shank 13272

Freud, 99-239 Drawer Lock Bit 1/4'' Shank 13272

Application:

• Forming a strong joint between the sides and front of a drawer
• Cuts all composite materials, plywood, hardwood and softwood
• Use on table-mounted portable routers

Features:

• Forms a strong joint between the sides and front of a drawer
• Drawer fronts are formed horizontally - flat on table surface, drawer sides are formed vertically against the fence of the table

Specifications:

• Overall Dia. (D) 1 1/4"
• Small Dia. (n) 1 1/64"
• Carbide Height (h) 1/2"
• Minor Height (m) 13/64"
• Angle (d) 30°
• Shank Dia. (A) 1/4"
• Overall Length (H) 1 3/4"
