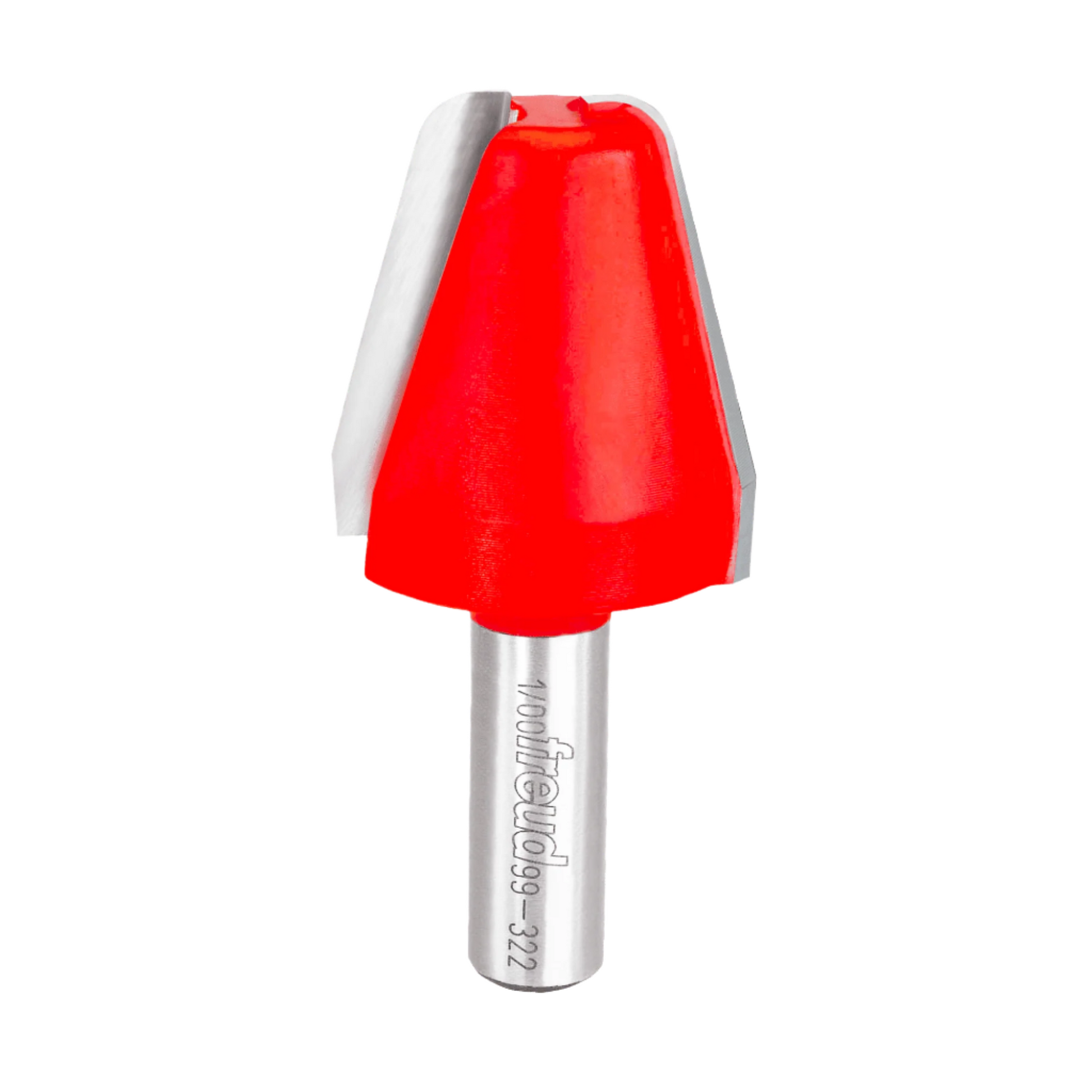

Freud, 99-322 Radius Vertical Raised Panel Bit 1/2'' Shank

Freud, 99-322 Radius Vertical Raised Panel Bit 1/2'' Shank

Application:

• Creates full sized raised panels by feeding 3/4" stock vertically
• Cuts all composite materials, plywood, hardwood and softwood
• Use on table-mounted portable routers

Features:

• Creates full sized raised panels by feeding the 3/4" stock vertically
• Small overall diameter makes these bits ideal for lower horsepower and single speed routers

Specifications:

• Overall Dia (D) 1 1/2''
• Carbide Height (h) 1 5/8''
• Minor Height (m) 23/64"
• Large Radius (R1) 3/8"
• Shank Dia. (A) 1/2''
• Overall Length (H) 3-3/16''
