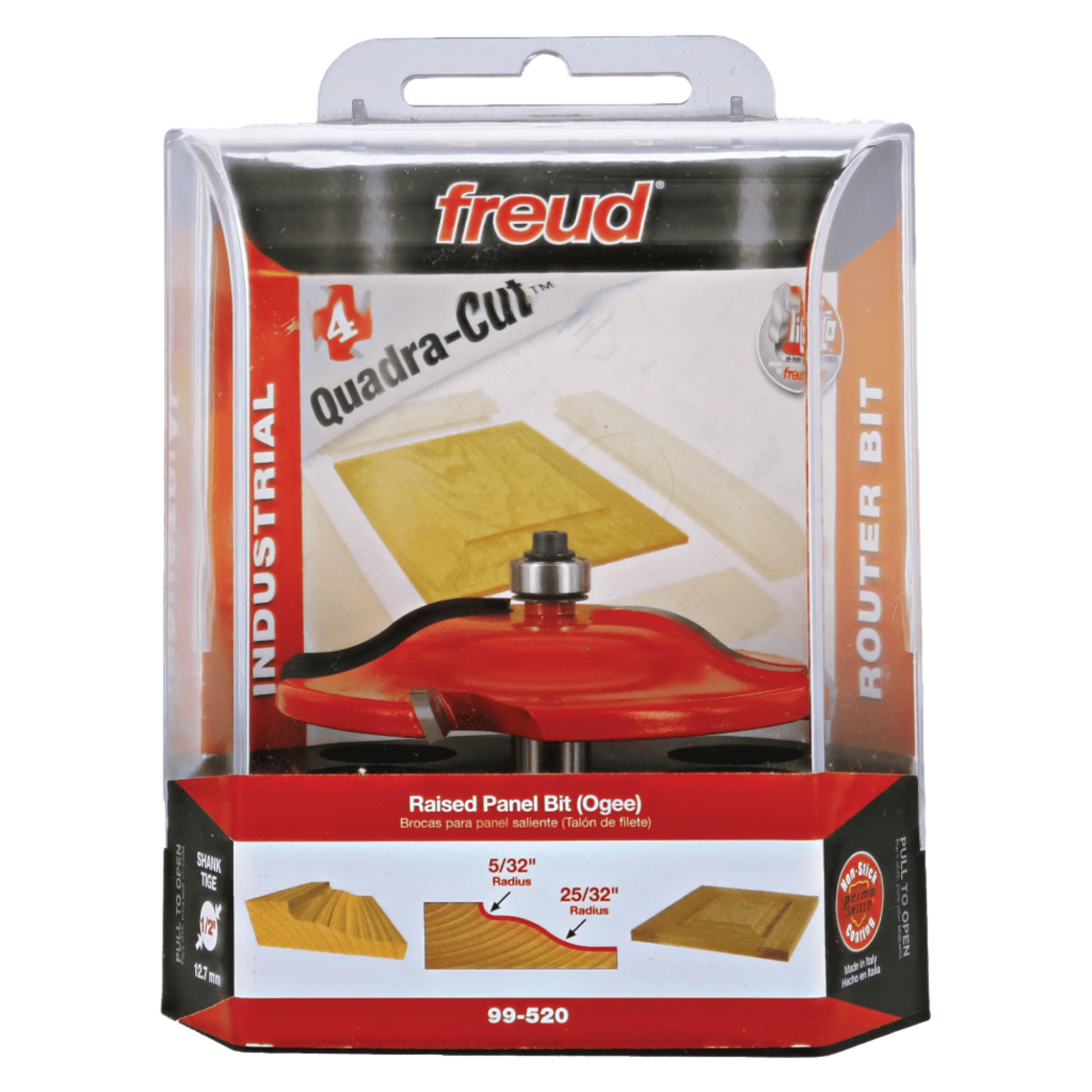

Freud, 99-520 Quadra-Cut™ Raised Panel Bit 1/2'' Shank 13168

Application:

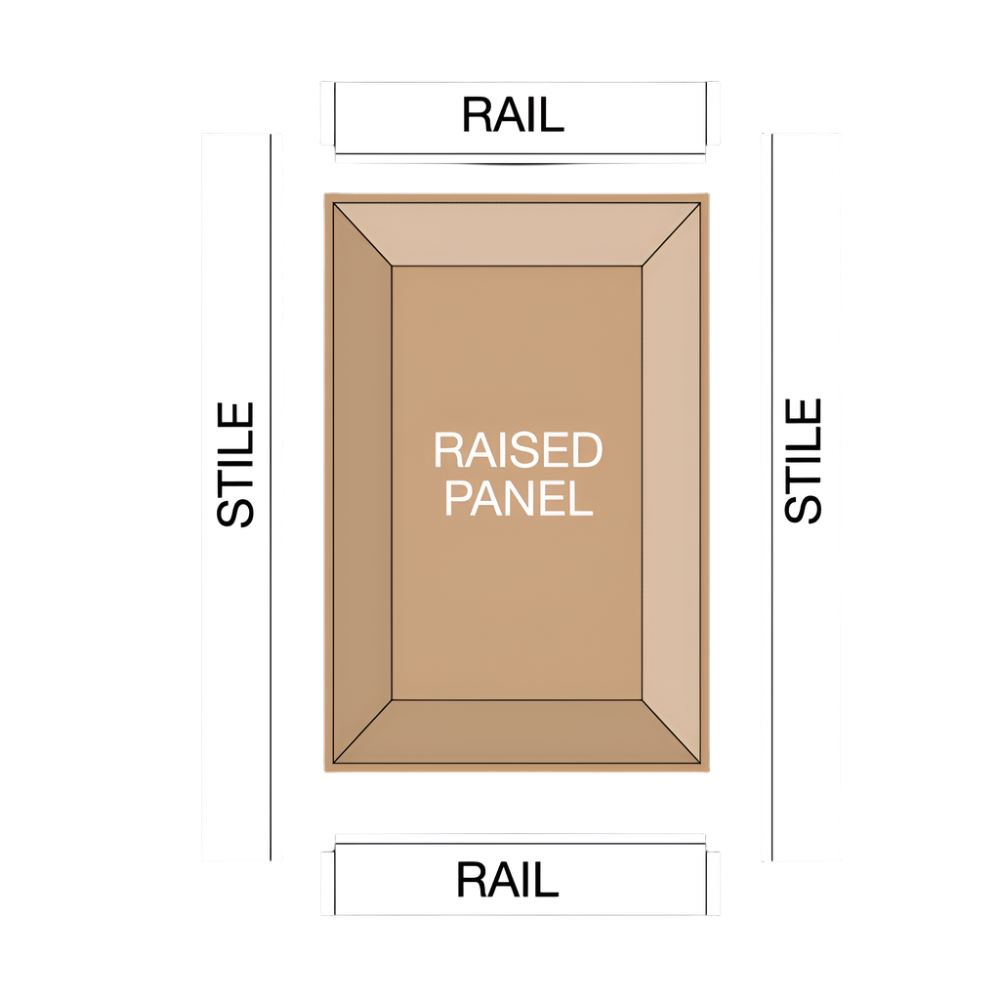

• Ideal for creating raised panels for doors and paneling, as well as decorative tops, plaques and molding
• Cuts all composite materials, plywood, hardwood and softwood
  Use on table-mounted portable routers

Features:

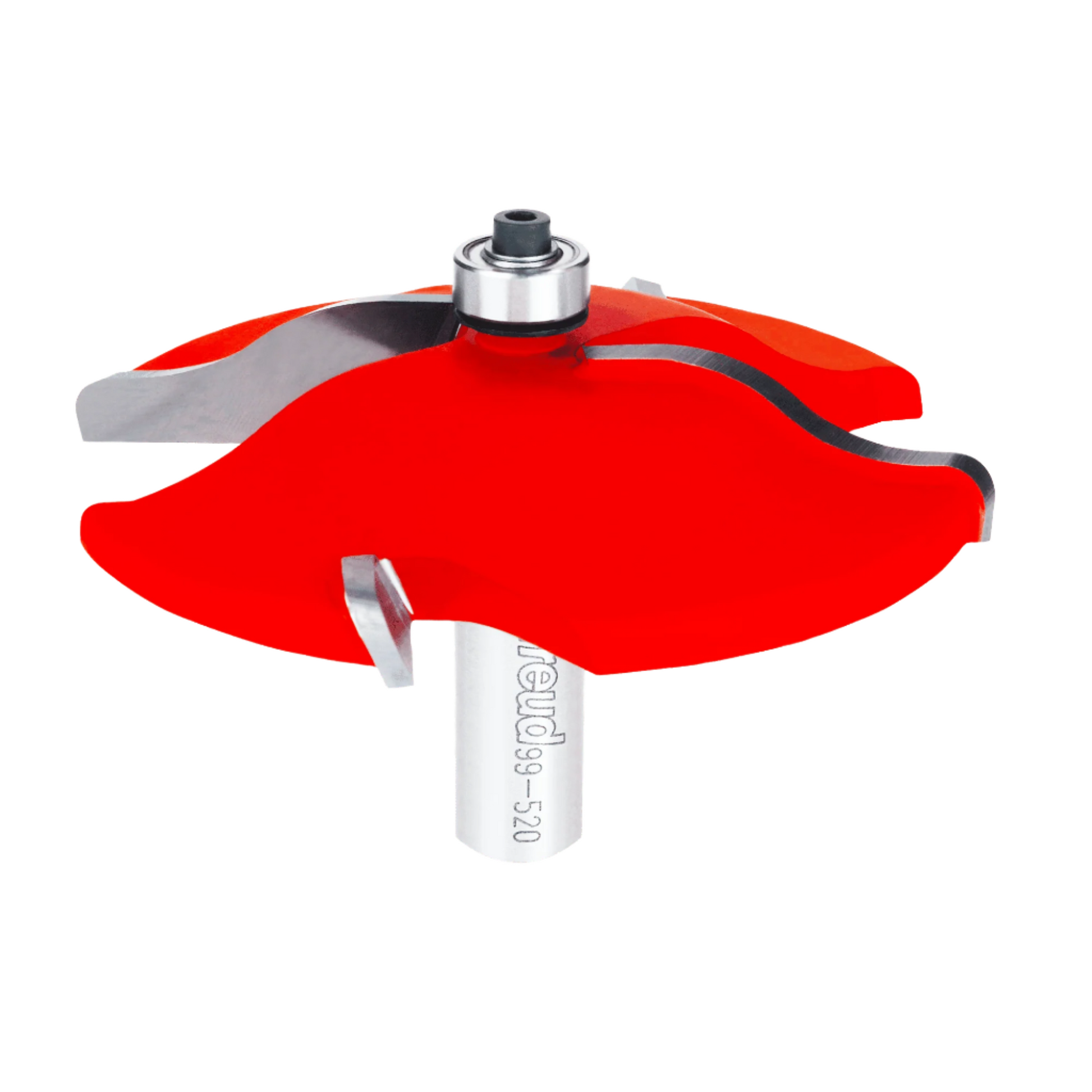

• Revolutionary Quadra-Cut™ design combines two small wings that cut downward to shear the top edge for a splinter-free surface, and two large wings that shear upward for a smooth finish.
• Use 1/2" height for 5/8" stock
• Use 5/8" height for 3/4" stock.

Specifications:

• Overall Dia: (D) 3 1/2"
• Carbide Height: (h) 5/8"
• Minor Height: (m) 7/32"

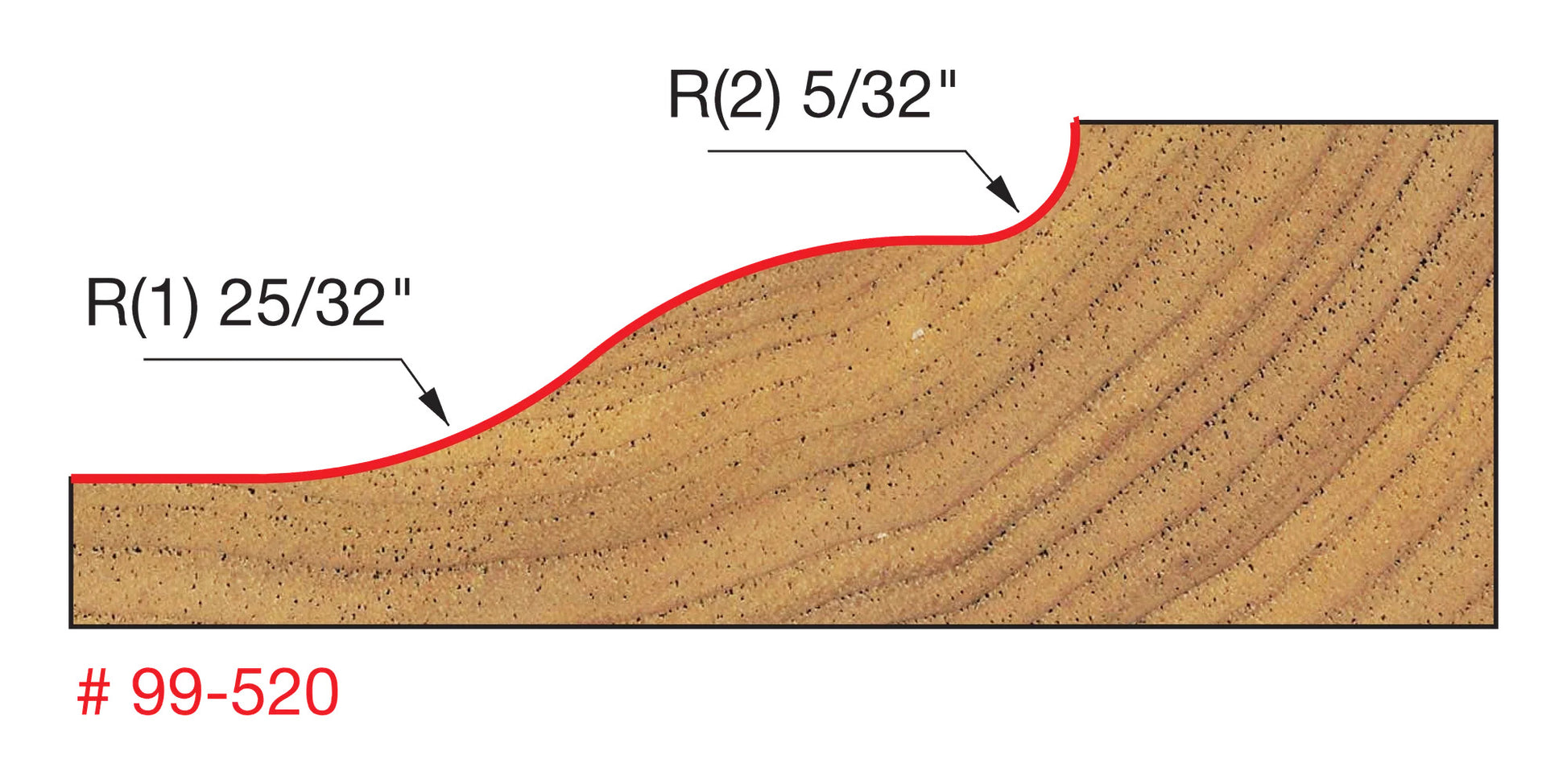

• Large Radius: (R1) 25/32"
• Small Radius: (R2) 5/32"
• Shank Dia: (A) 1/2"
• Overall Length: (H) 2-1/2"
