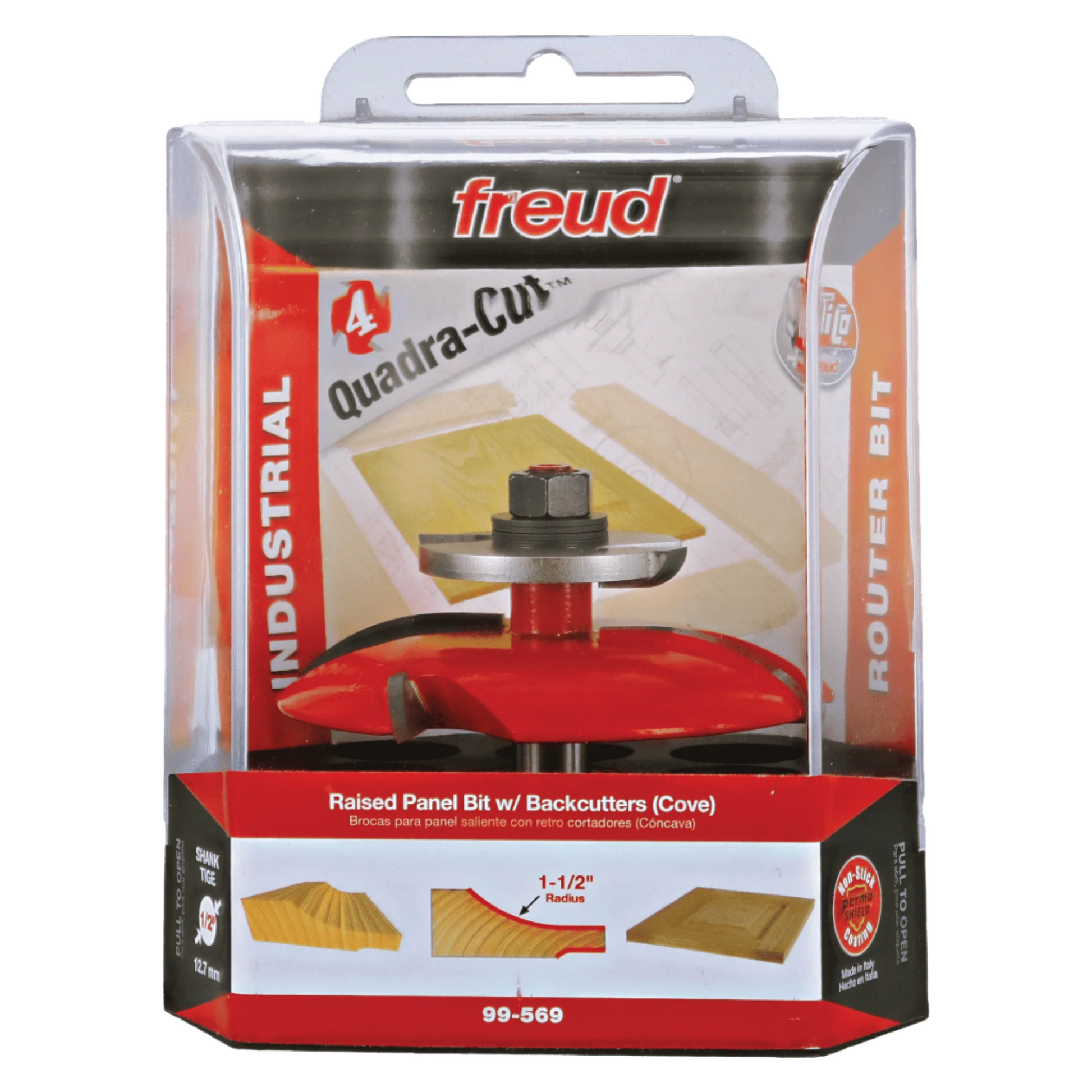

Freud, 99-569 Quadra-Cut Raised Panel Bit w/Backcutter 1/2'' Shank 13240

FreudSKU: 99-569
filler

Price:
$131.99

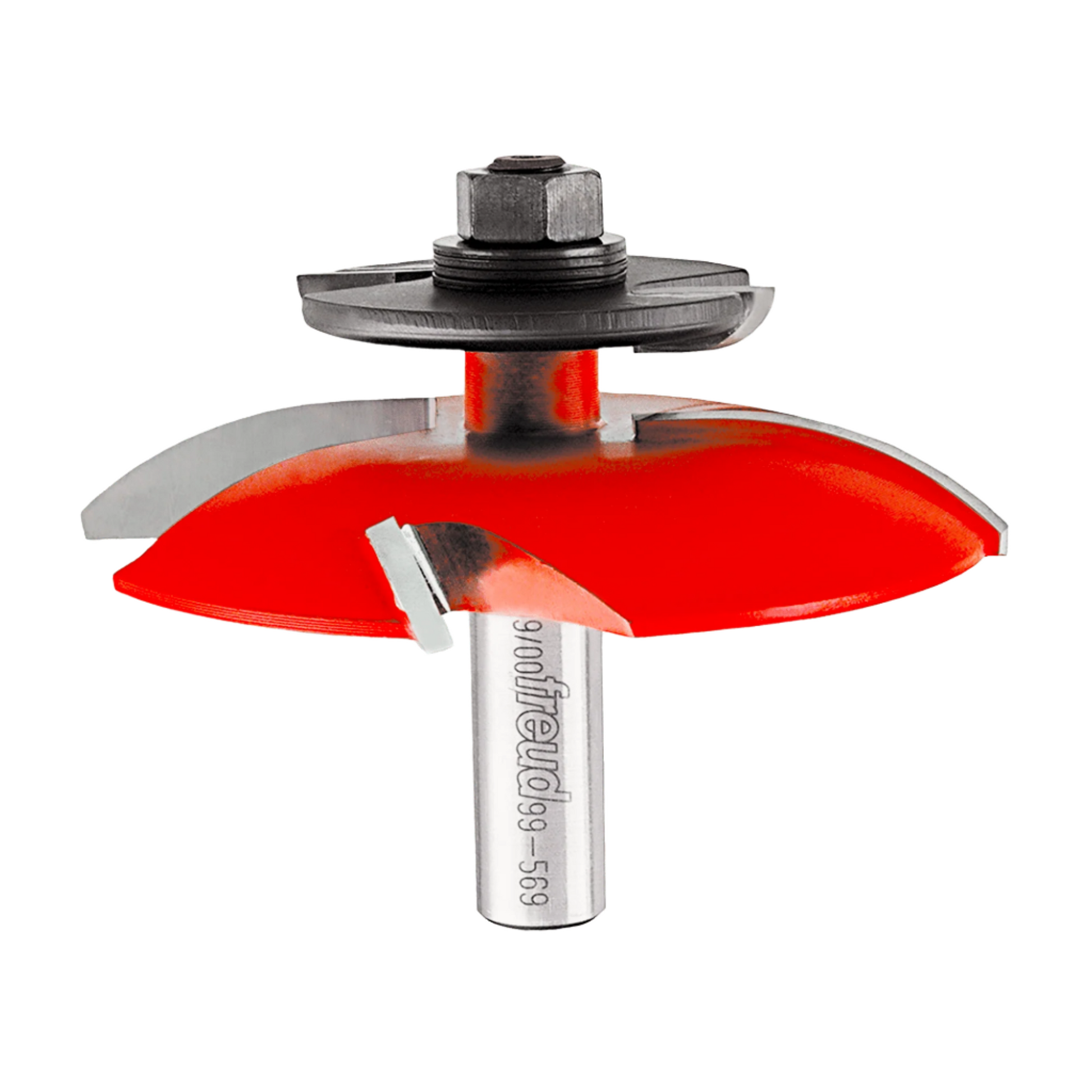

Freud, 99-569 Quadra-Cut™ Raised Panel Bit w/Backcutter 1/2'' Shank 13240

Application:

  • Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
  • Cuts all composite materials, plywood, hardwood and softwood
  • Use on table-mounted portable routers

Features:

  • Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.

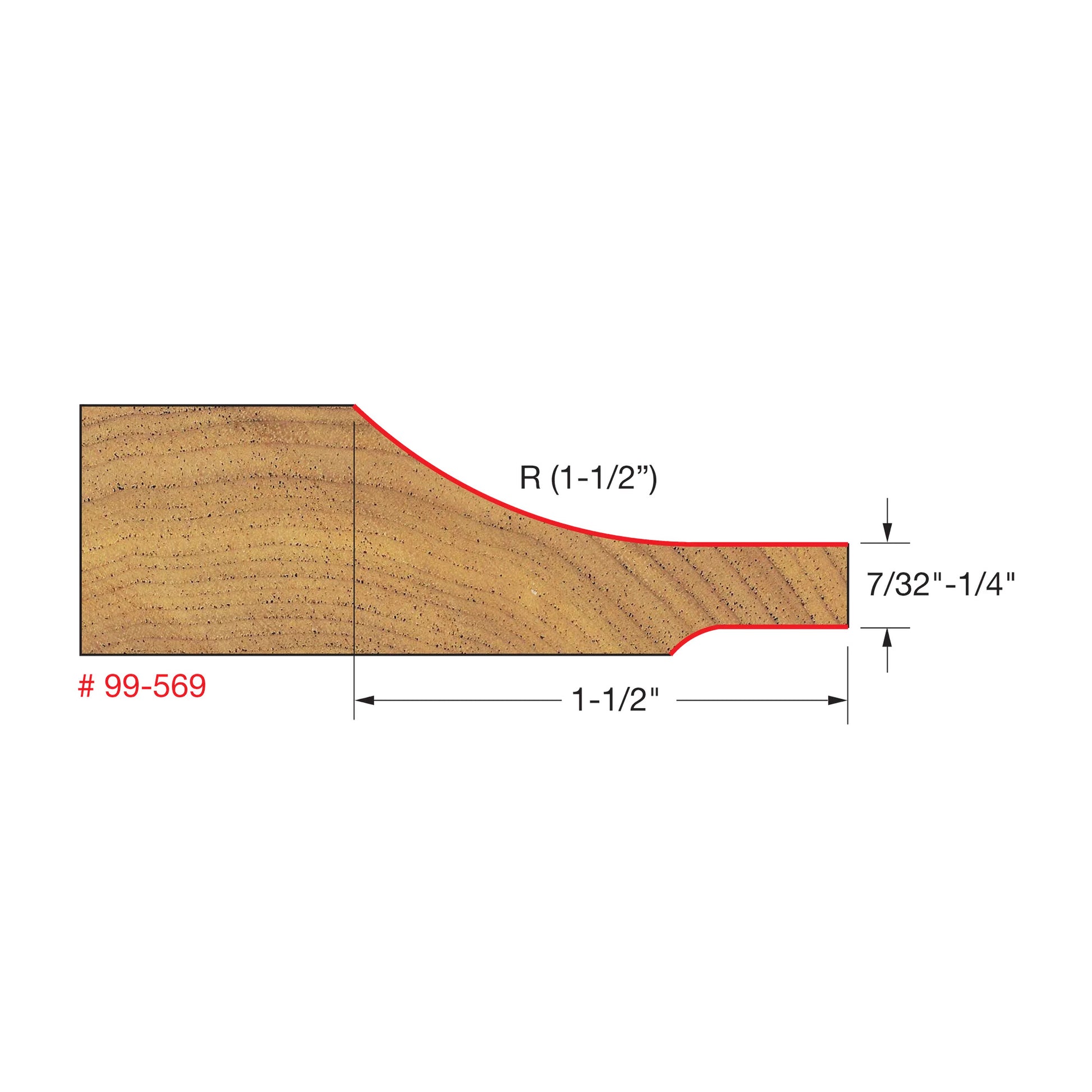

  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius backcutter gives double-sided appearance and can be replaced with optional 54-560 square backcutter for a more contemporary look.
  • Optional Replacement Backcutters 54-560 & 54-562

Specifications:

  • Overall Dia (D) 3 1/2"
  • Carbide Height (h) 1"
  • Minor Height (m) 5/32"
  • Large Radius (R1) 1 1/2"
  • Small Radius (R2) 3/16"
  • Shank Dia. (A) 1/2''
  • 121.35Overall Length (H) 3''
