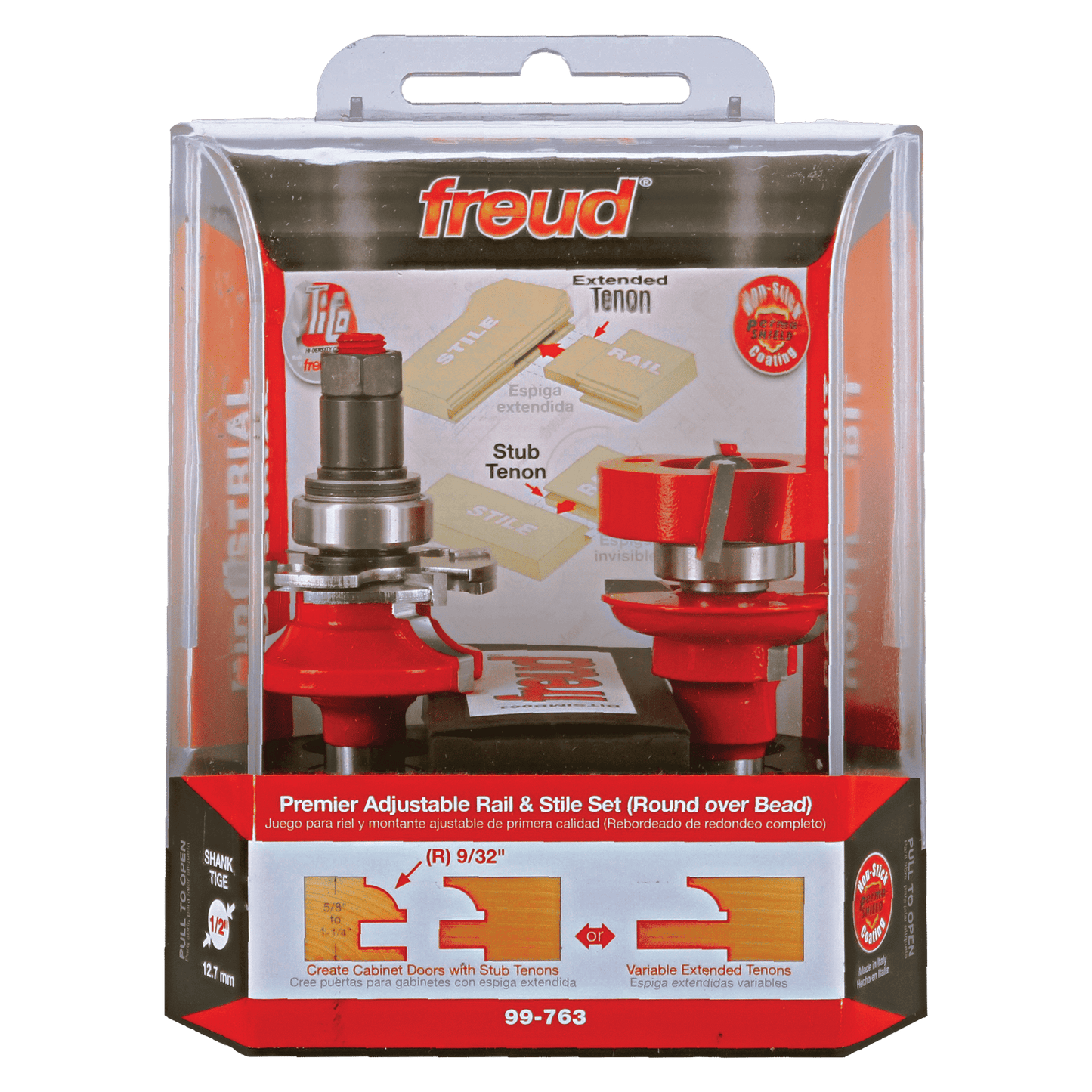

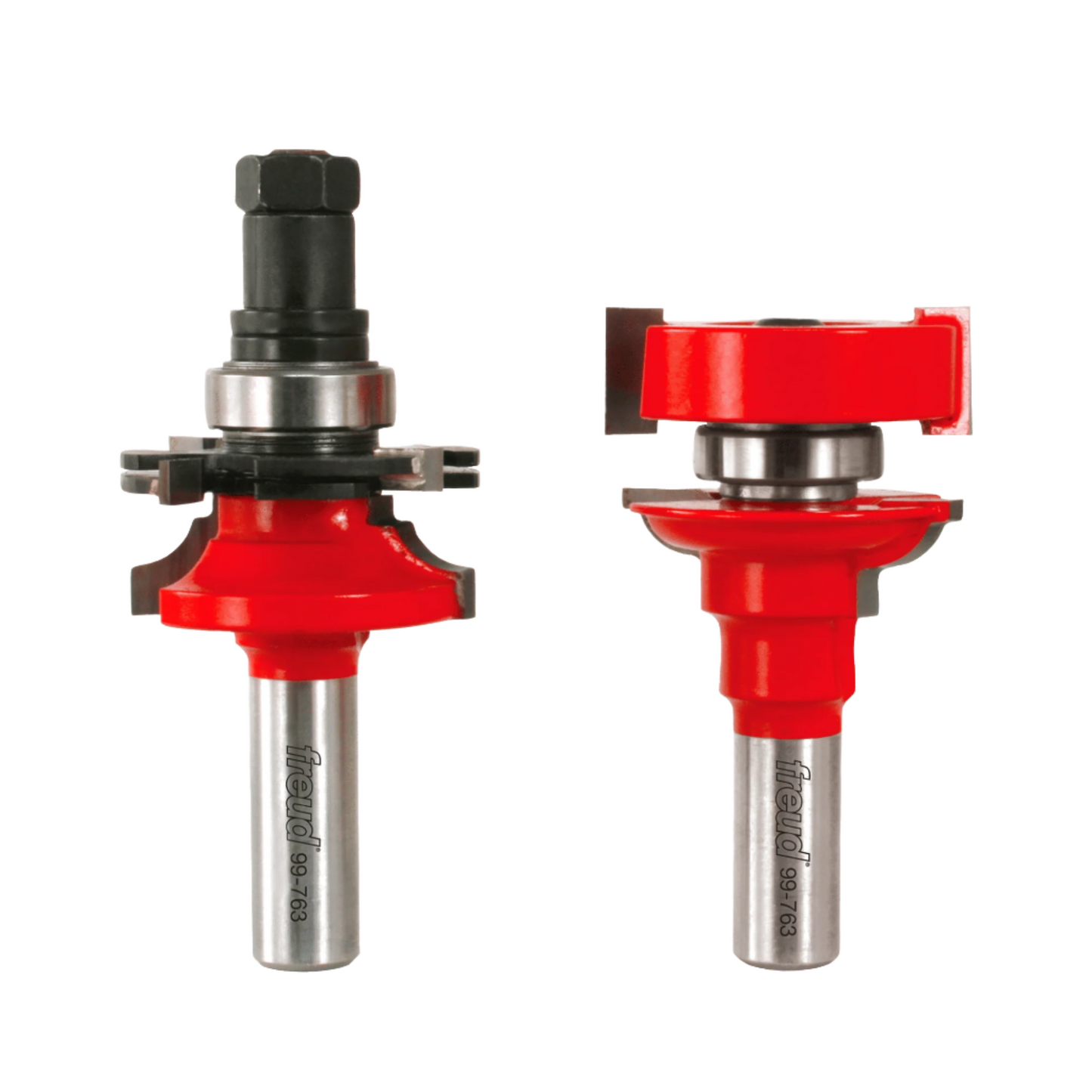

Freud, 99-763 Premier Adjustable Rail and Stile (Round Over Bead) 1/2'' Shank 14564

Freud, 99-763 Premier Adjustable Rail & Stile (Round Over Profile) 1/2" Shank 14564

Description:

• Now with Freud´s unique, patented Premier Adjustable Rail and Stile Router Bit system, you are able to build any style of cabinet door in a range of door thicknesses and sizes! This extremely easy-to-use solution gives you unlimited creative freedom, and solves the long-standing challenges and limitations of frame and panel door construction.

Application:

• Produces perfect fitting rail and stile doors from 5/8" to 1-1/4" stock

Features:

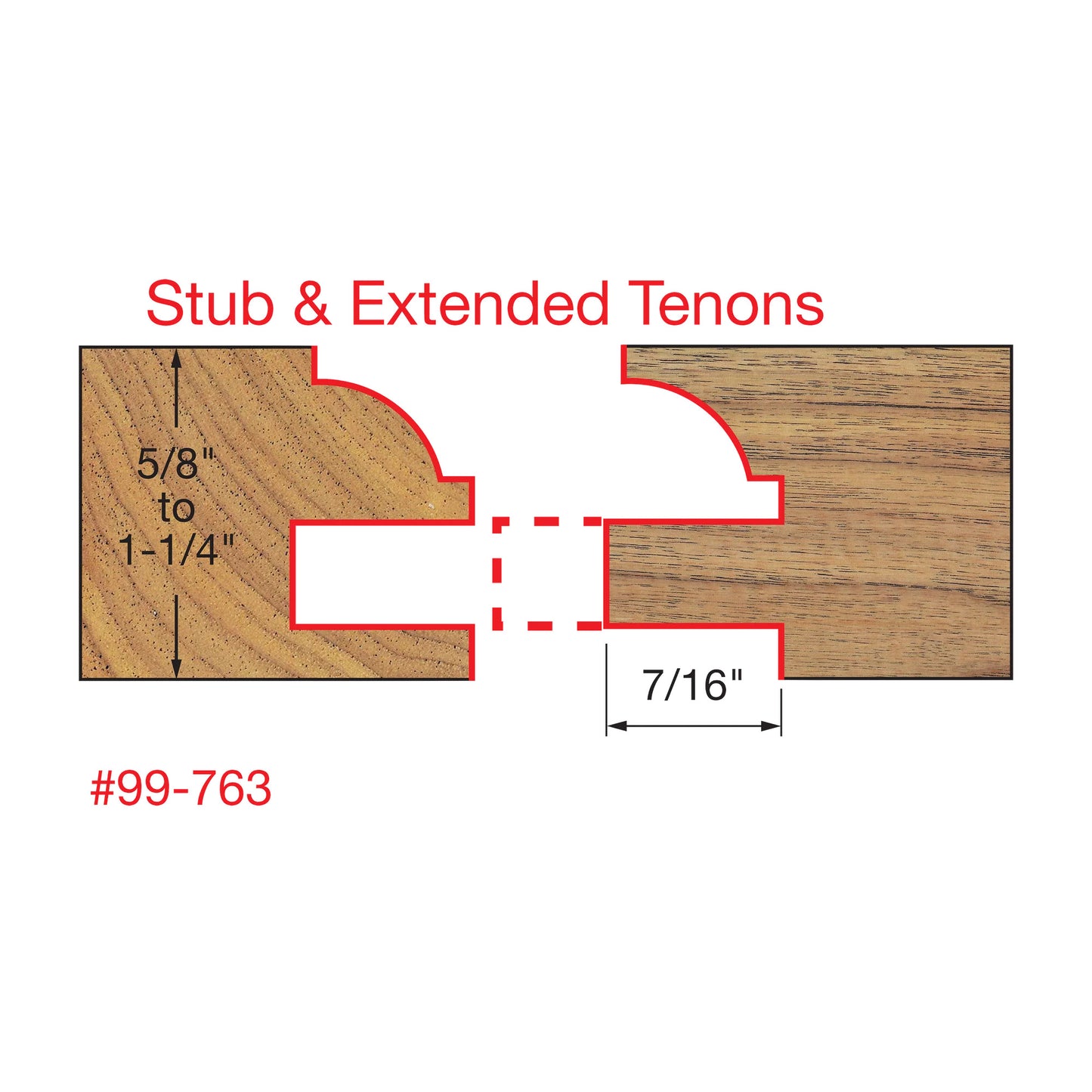

• Our new Rail & Stile system is the FIRST & ONLY solution on the market that allows you to create extended tenons for extra door joint strength (patented solution)
• Adjustable shims adjust panel groove down to 7/32"(5.5mm) and up to 3/8" (9.5mm) thick, ideal for plywood panels.
• Choose from a variety of material thicknesses (5/8" to 1-1/4")
• Create extended tenons for extra door joint strength (patented solution)

Specifications:

• Wood Thickness 5/8'' to 1''
• Overall Dia (D) 1-11/16''
• Large Radius (R) 9/32''
• Shank Dia. (A) 1/2''
• Overall Length (H) 3 5/8"

Optional Cutters:

• Create glass or screen doors (54-760)
• Create double sided profiles in thicker stock material (99-863)
