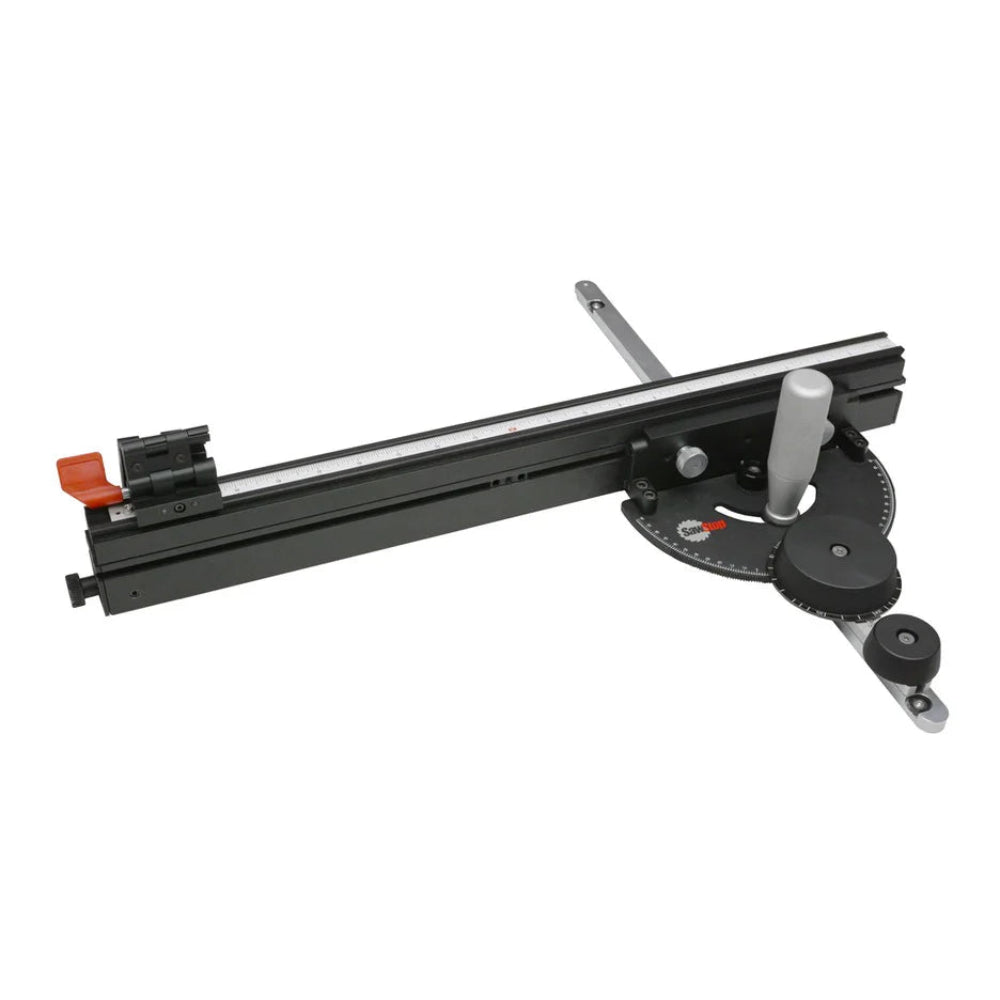

SawStop, TSA-RMG Revolution Miter Gauge

SawStop, TSA-RMG Revolution Miter Gauge 900272

Description:

The Revolution Miter Gauge (TSA-RMG) uses patent-pending technology to deliver precise angle setting as fine as 1/10° with a simple turn of the dial, as well as features that make it stand out against other miter gauges:

• The RMG uses an intuitive geared dial system to set any angle up to 60° each side of zero, with settings in increments of 1°, 1/2°, 1/4°, or 1/10° with a positive tactile “click” in each notch as you turn the dial. You can also bypass the gear system for free turning.

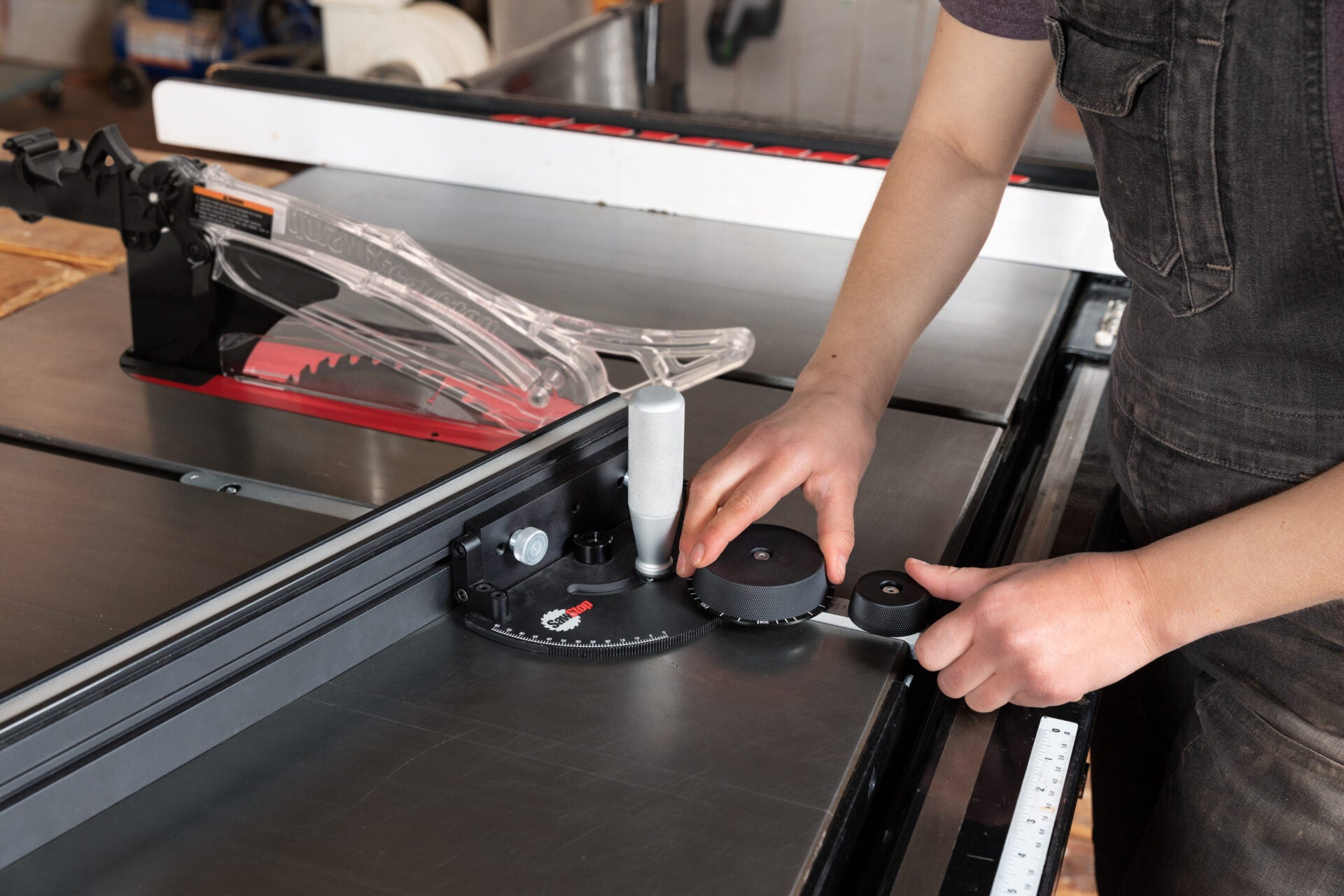

• Setting angles with the RMG is as simple as 1, 2, 3: Loosen the grip, select the increment for making angle changes, and turn the dial to move the head to the desired angle.
• Markings on the dial align with markings on the head for absolute precision no matter the angle; includes common angle settings of 22-1/2°, 30°, 45°, and 60°.
• Fits any table saw with a 3/8”x3/4” miter slot, with self-adjusting steel washers to remove any play in the miter slot, and a removeable washer on the front of the bar to fit into T-shaped slots.
• The RMG uses a sliding wedge system for securing fence attachments and repeatable stops. The reversible, telescoping fence works with the miter gauge in either the left or right miter slots with equal accuracy and ease of use.
• Make repeatable cuts up to 37″ in length using the tool-free articulating flip stop—with or without a sacrificial fence. A micro-adjuster lets you fine-tune a crosscut length without repositioning the flip stop. The flip stop includes mounting holes for adding jigs or locking into the wedge system.
• Heavy-duty construction, including a steel miter plate manufactured with machine tolerances of <.001” for exceptional precision.

Features:

The Scale Miter Gauge (TSA-SMG) brings can’t-miss accuracy to any table saw, with up to 181 precise notches and the ability to adjust any angle within 1/10°. Other features include:

• A protractor head with a pointer-and-notch alignment mechanism that locks in precise angles up to 90° each side of zero, including notches for 22-1/2° on each side.
• A built-in Vernier scale gives you the ability to fine-tune any angle in 1/10° increments.
• An 18”-long miter bar, made to fit in common 3/8”x3/4” miter slots, uses six adjustable washers to eliminate side-to-side movement while ensuring a smooth glide forward and back. A removeable T-clip at the front of the bar fits into T-shaped slots.
• The aluminum fence provides a large reference for holding workpieces accurately, with a telescoping extension that reaches up to 34” with the flip stop. A T-slot in the front face provides a place to attach auxiliary wood fences with T-bolts. The scale on top of the fence can be calibrated to enable making precise crosscuts without having to measure and mark your boards.
• Use the flip stop to make repeated cuts at the same setting for identical project parts. The flip stop indexes on the fence in 1/32” increments. The flip stop’s dual arms can be set independently at different lengths from the blade or linked together with a rod, all of which can be fine-tuned with a built-in micro-adjuster.
