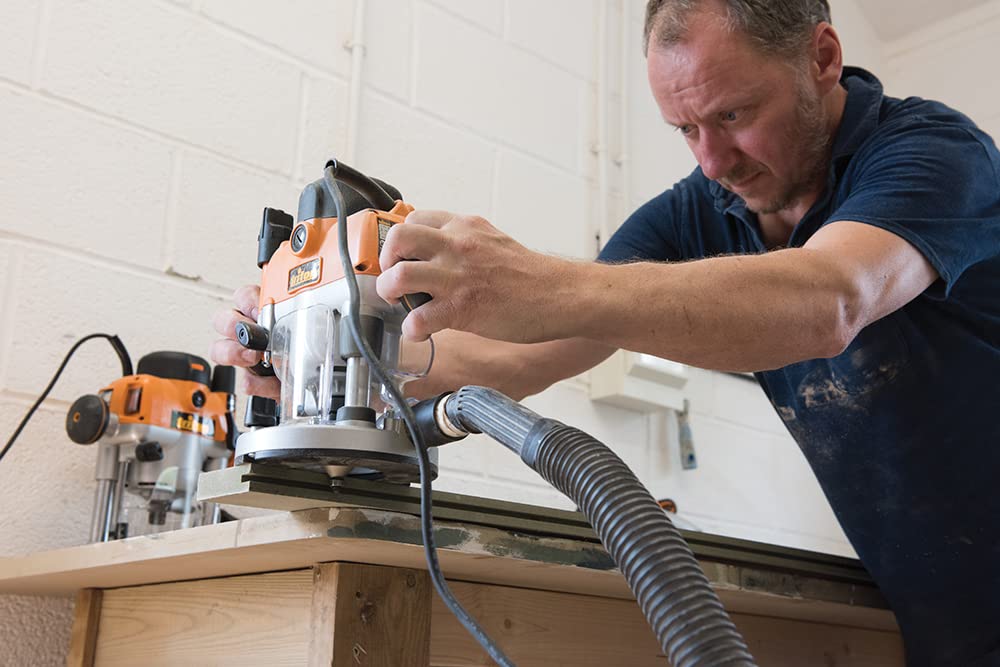

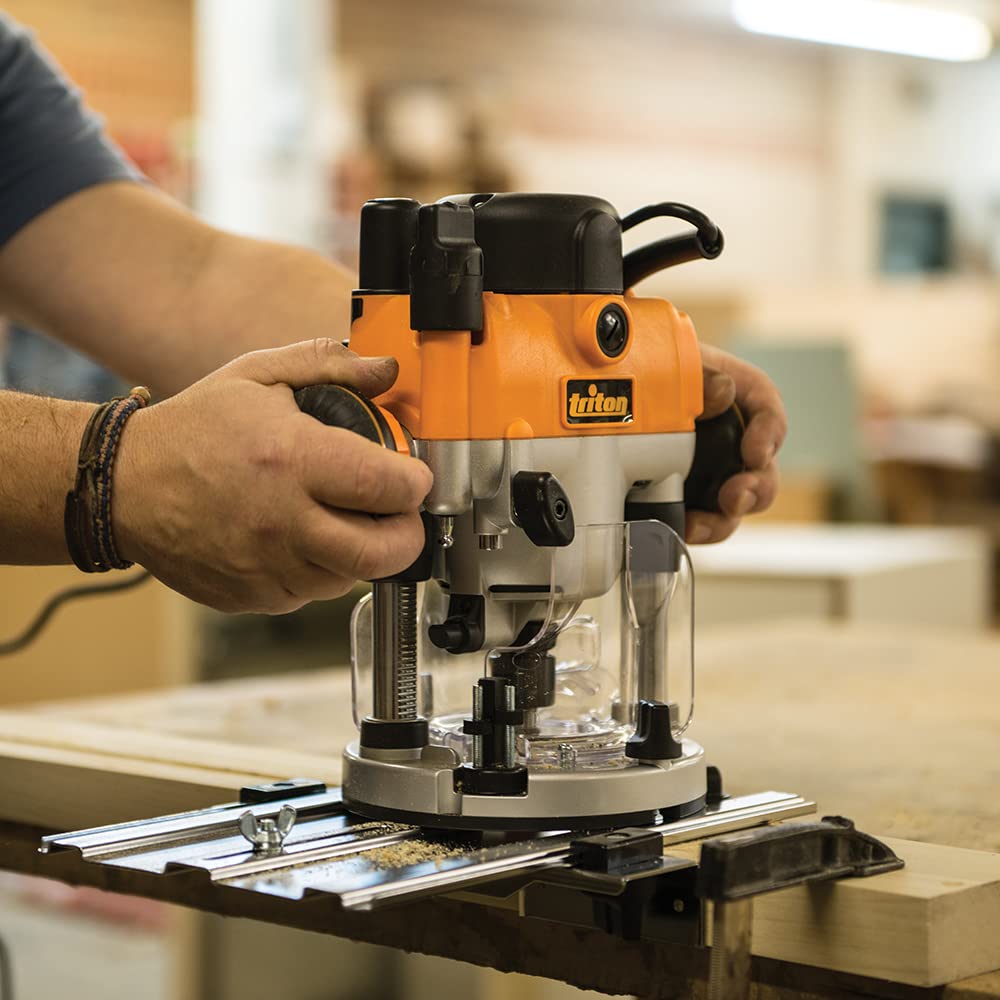

Triton, MOF001 2 1/4 HP Plunge Router

Triton, MOF001 2 1/4 HP Plunge Router 11001

Key Features:

1. Powerful Motor: The 2 1/4 HP motor delivers robust power, capable of handling a variety of routing tasks with ease.
2. Dual Mode: Easily switches between plunge and fixed-base routing, offering flexibility for different applications.
3. Micro Winder: Provides continuous fine depth adjustment through the full plunge range for precise and accurate routing.
4. Single Spanner 'Above Table' Height Adjustment: Allows for easy and accurate bit height adjustments from above the table, enhancing convenience and efficiency.
5. Soft Start and Variable Speed: Soft start reduces start-up torque for better control, while variable speed control allows for adjusting the speed to match the material and application.
6. Automatic Spindle Lock: Engages only when the power switch is off, ensuring safety and making bit changes easy with a single wrench.
7. Safety Features: Includes a safety switch shutter to prevent accidental operation, enhancing user safety.
8. Built-In Work Light: Illuminates the work area for better visibility and accuracy.

Benefits:

• Precision and Control: Offers precise depth adjustments and stable control for detailed and intricate routing tasks.
• Versatility: Dual-mode design and wide range of adjustments make it suitable for various woodworking projects, from edge trimming to deep plunging.
• Ease of Use: Features like above-table height adjustment and automatic spindle lock make the router user-friendly and efficient.
• Safety: Multiple safety features protect the user and enhance the overall reliability of the tool.

Applications:

• Cabinet making
• Furniture construction
• Joinery
• Custom woodworking projects
• Edge trimming
• Dado cuts
• Template routing

Specifications:

• Motor Power: 2 1/4 HP
• Variable Speed: 8,000 - 21,000 RPM
• Plunge Range: 0 - 59mm (0 - 2 5/16 inches)
• Collet Size: 1/2 inch and 1/4 inch
• Weight: Approximately 13 pounds (5.9 kg)

Overall, the Triton MOF001 2 1/4 HP Plunge Router is a high-performance tool that offers power, precision, and versatility for a wide range of woodworking tasks. Its ergonomic design, variable speed control, and dual-mode capability make it an excellent choice for both professional woodworkers and serious DIY enthusiasts.

Features:

• Award-winning router with compact and powerful 1400W / 2-1/4hp motor and 8000-21,000rpm electronic speed maintenance under load.
• Quick-fit pins located in base for rapid fitment to mounting plate.
• Compatible with the Triton RTA300 router table. Easy-set, direct reading 3-stage turret for precise pre-set cut depths.
• Single dial switch from plunge to fixed-base router with rack and pinion height adjustment.
• 1/4" and 1/2" collet for a greater range of bit fitment
• 1400W / 2-1/4hp motor for maintained speed under load
• Automatic spindle lock engages only when power switch cover is closed
• Soft start and variable speed for all cutter types
• Micro winder enables continuous fine depth adjustment through the full plunge range
• Rack and pinion height adjustment and table winder eliminates the need for expensive lifting mechanisms when used with router tables
• Electronic speed control ensures a fine finish on all materials
• Removable plunge spring for easy bit adjustment when table mounted
• 3-stage turret with direct reading scales for precise pre-set cut depths
• Fully enclosed guarding provides maximum protection from the cut zone and assists dust extraction
• Multi-function fence provides optimum control for hand-held use and circle cutting
• Quick-fit pins for fast fitment and removal from the fence and the RTA300 Router Table
• Side air vents reduce intake of dust into the motor casing when mounted upside-down in a router table
• Excellent dust extraction for a cleaner, safer working environment
• Easy access brushes for quick changes

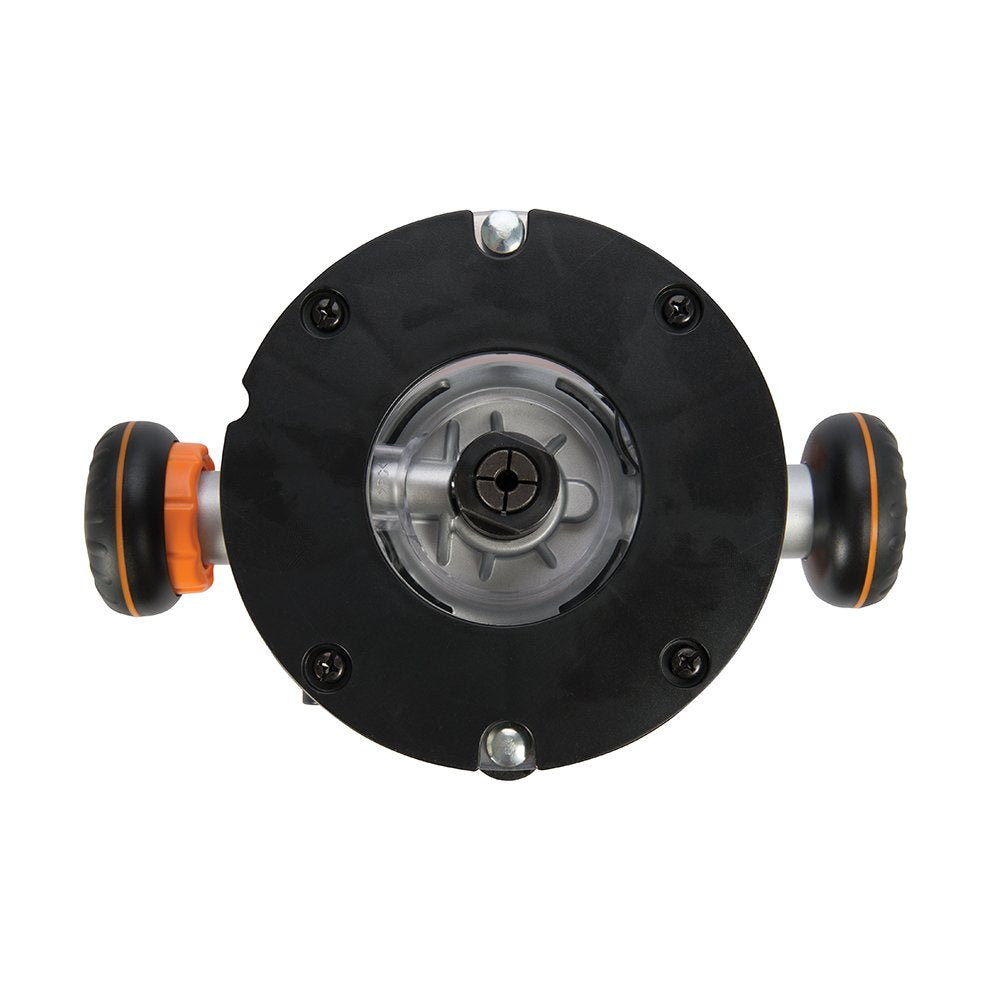

• Through the base single-wrench bit change is achieved with the automatic spindle lock
• Safety switch shutter locks closed in bit-change mode to prevent router being switched on
