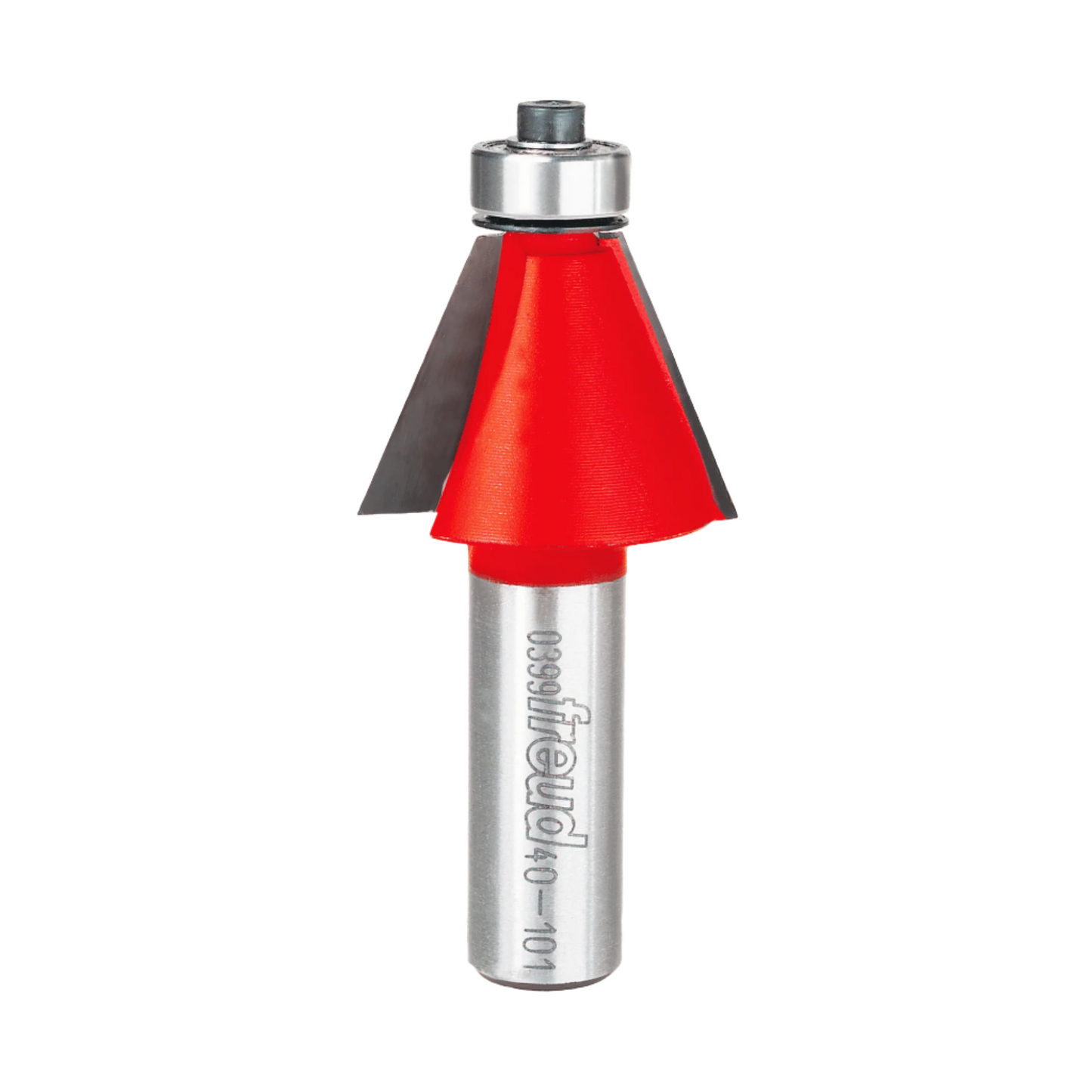

Freud, 40-101 22 1/2º 1-1/4" Chamfer Router Bit 1/2" Shank

Application:

• For multiple-sided projects, joinery, and easing edges
• Cuts all composite materials, plywood, hardwood and soft wood
• Use on hand-held and table-mounted portable routers.

Features:

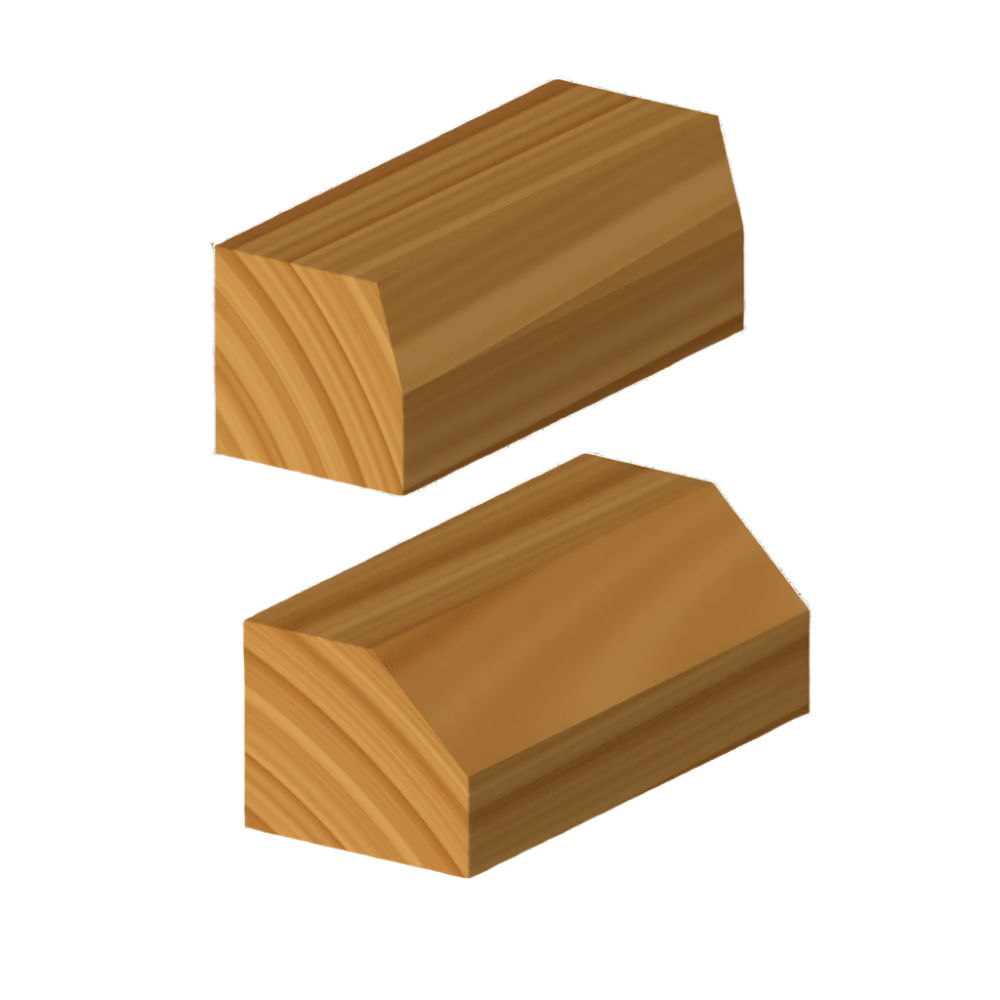

• Creates a uniform chamfer on the edge of any work piece to add character, while retaining crisp geometric lines.
• Ideal for making multiple sided projects. #40-094 makes 16-sided pieces and #40-098 makes 12-sided pieces.
• Chamfer size easily adjusts by changing the height of the bit.

Specifications:

• Overall Dia. (D) 1 1/4"
• Bearing Dia. (B) 1/2"
• Carbide Height (h) 7/8"

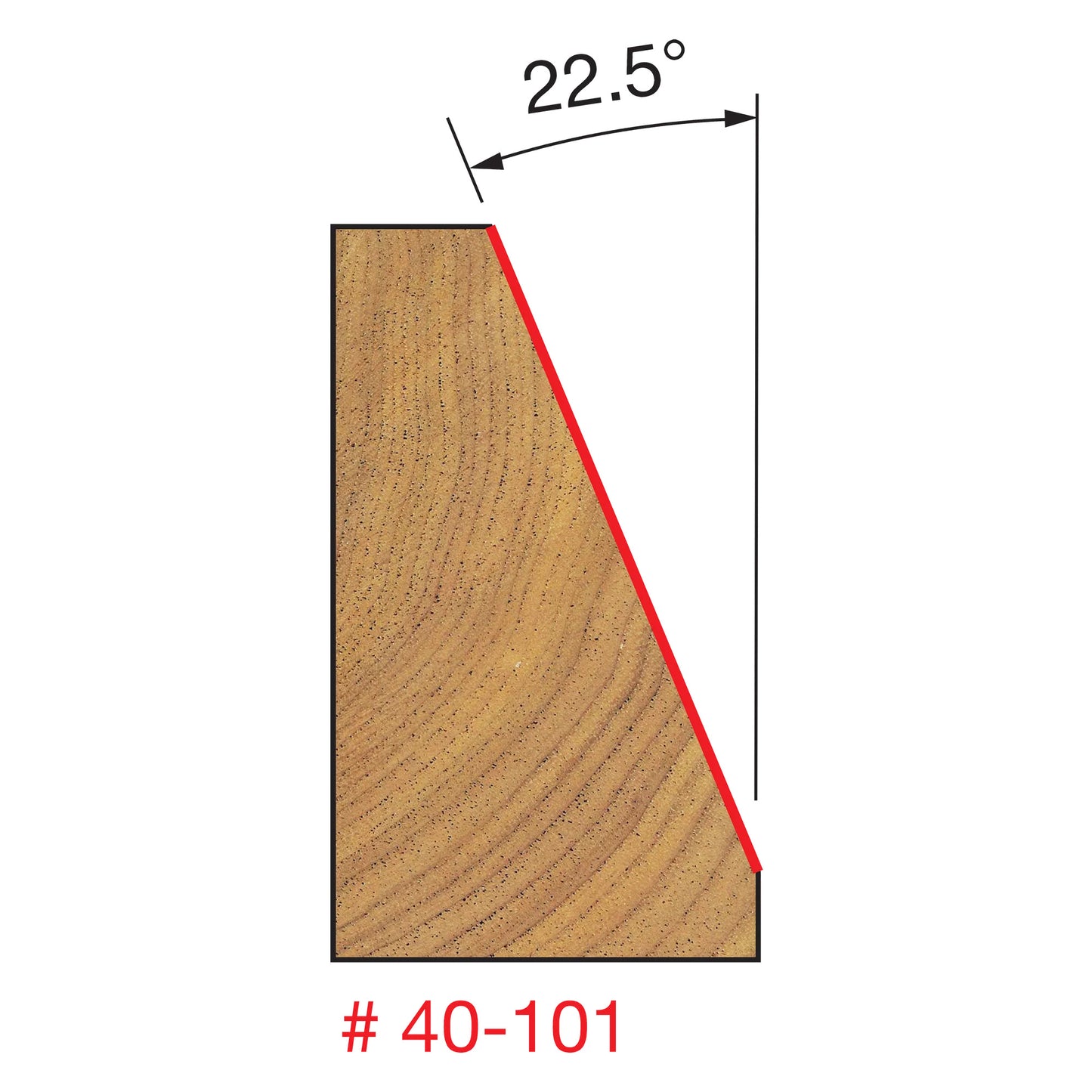

• Angle (d) 22 1/2°
• Shank Dia. (A) 1/2"
• Overall Length (H) 2 5/8"
