Jessem 02312 Rout-R-Lift II Router Lifter 9-1/4'' X 11-3/4'' Hitachi 59709

Jessem 02312 Rout-R-Lift II Router Lifter 9-1/4'' X 11-3/4'' Hitachi 59709

Description:

• Rout-R-Lift II For Use With Hitachi M12VC-KM2VC
• Double Sealed Ball Bearing Construction.
• The Jessem Rout-R-Lift II 02311 has a double sealed bearing to provide a lifetime of use for your Lift and even with the router installed your Lift can be raised and lowered with one finger.

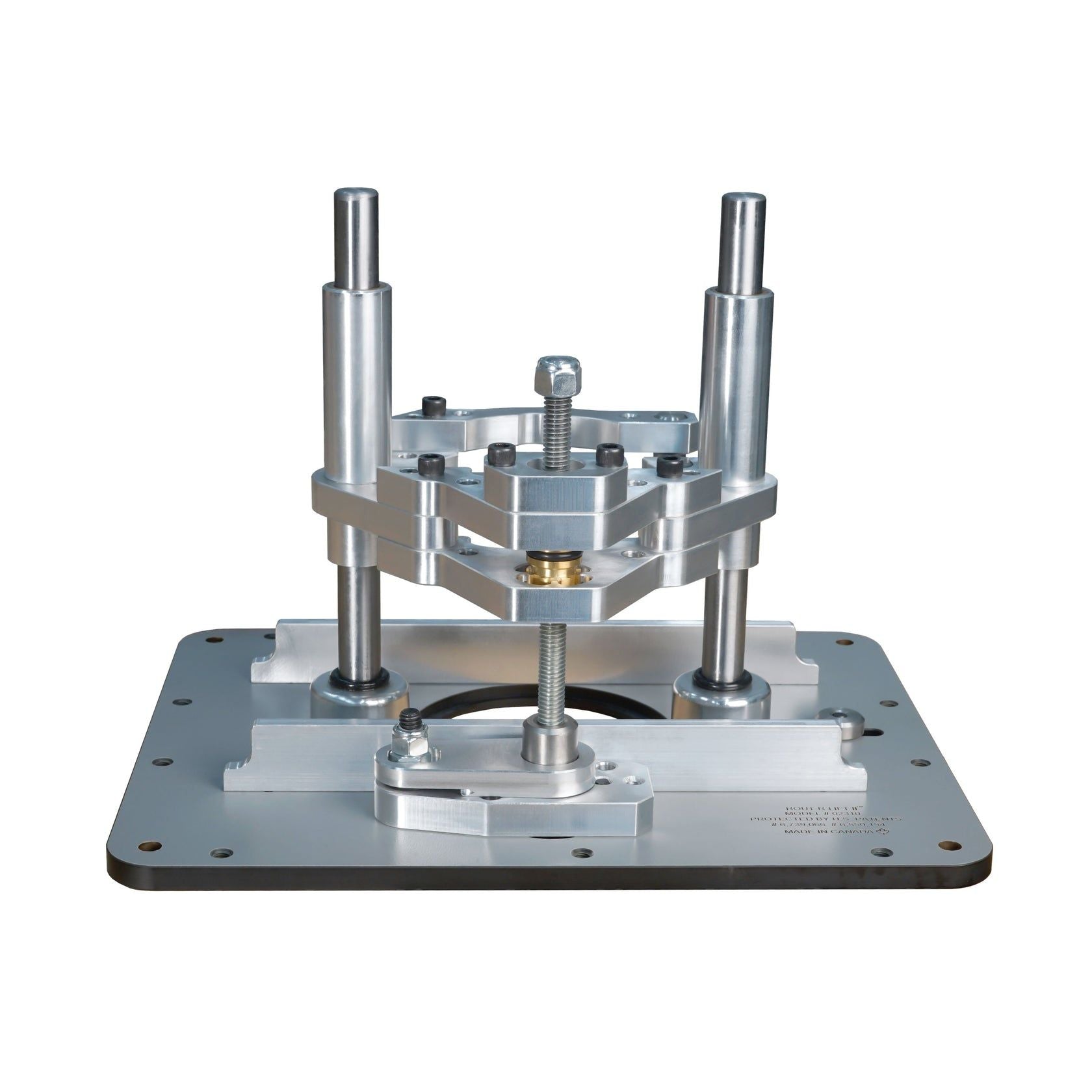

• The shafts on the Rout-R-Lift II, are pressed into a shaft mount with hydraulic pressure.. By pressing the shafts into a larger diameter mount we are able to attach the shafts to the top plate and fasten in place with more than one screw spreading the lateral load and providing a very rigid and durable mount that will withstand the toughest routing operations.
• Like our current Mast-R-Lift II, bit changes above the table was a must for all routers that work with this lift without the need for special bent wrenches.
• All the machined components on the Rout-R-Lift II are machined on one of our CNC machining centers at the Barrie, Ontario, Canada location. Even the crank handle on the Lift is machined out of solid bar stock.
• The Rout-R-Lift II comes with a 2" insert ring to reduce the size of the bit opening in the plate and the opening is large enough to accommodate a 3-1/2" diameter bit without an insert installed. The Jessem Router lift features Tab-Loc™ design insert rings which are another JessEm innovation that is common on many other manufacturers’ products today.

For Use With

• Hitachi M12VC-KM2VC

Specification

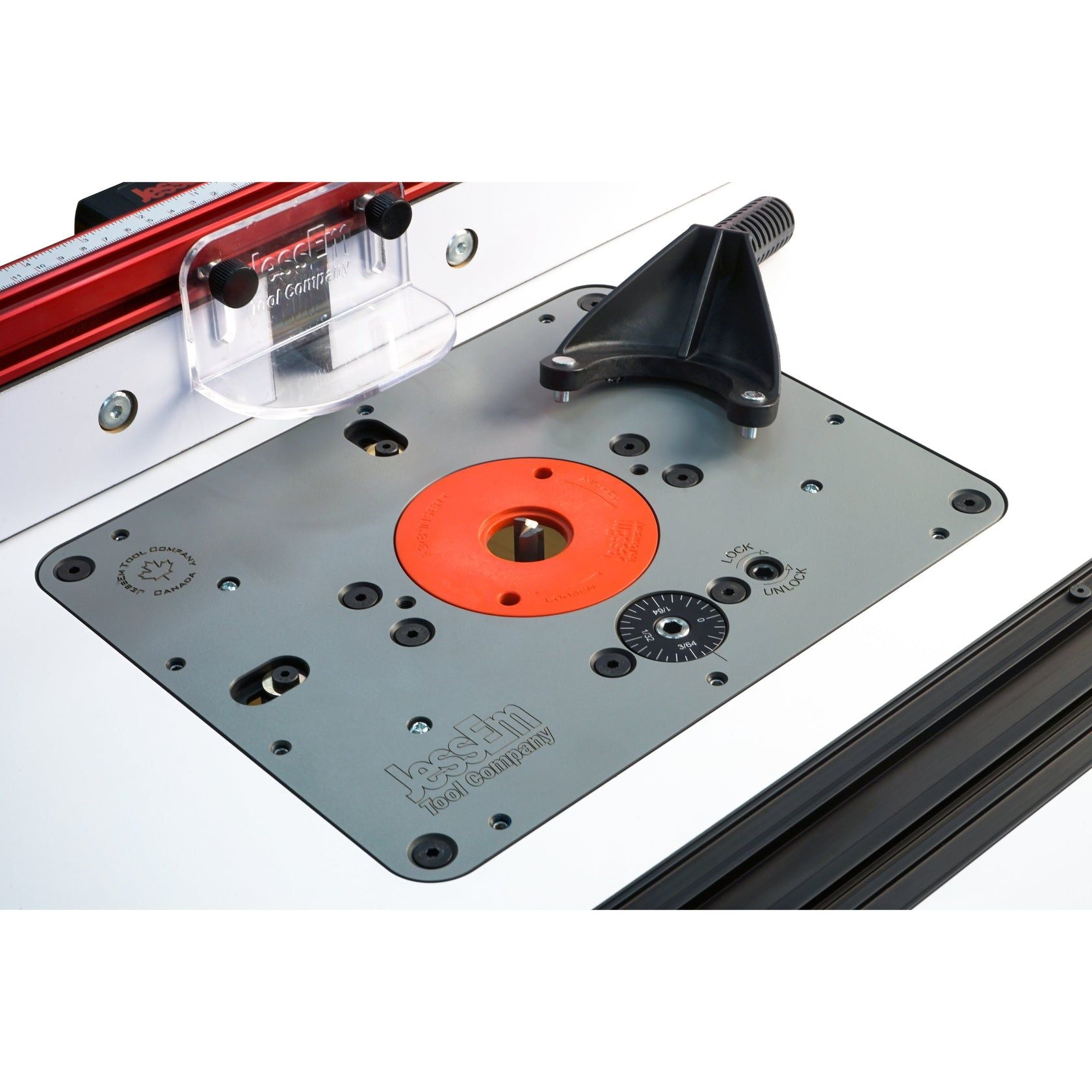

• Insert Plate Size (9-1/4" X 11-3/4" X 3/8" Thick)
• Vertical travel (3")

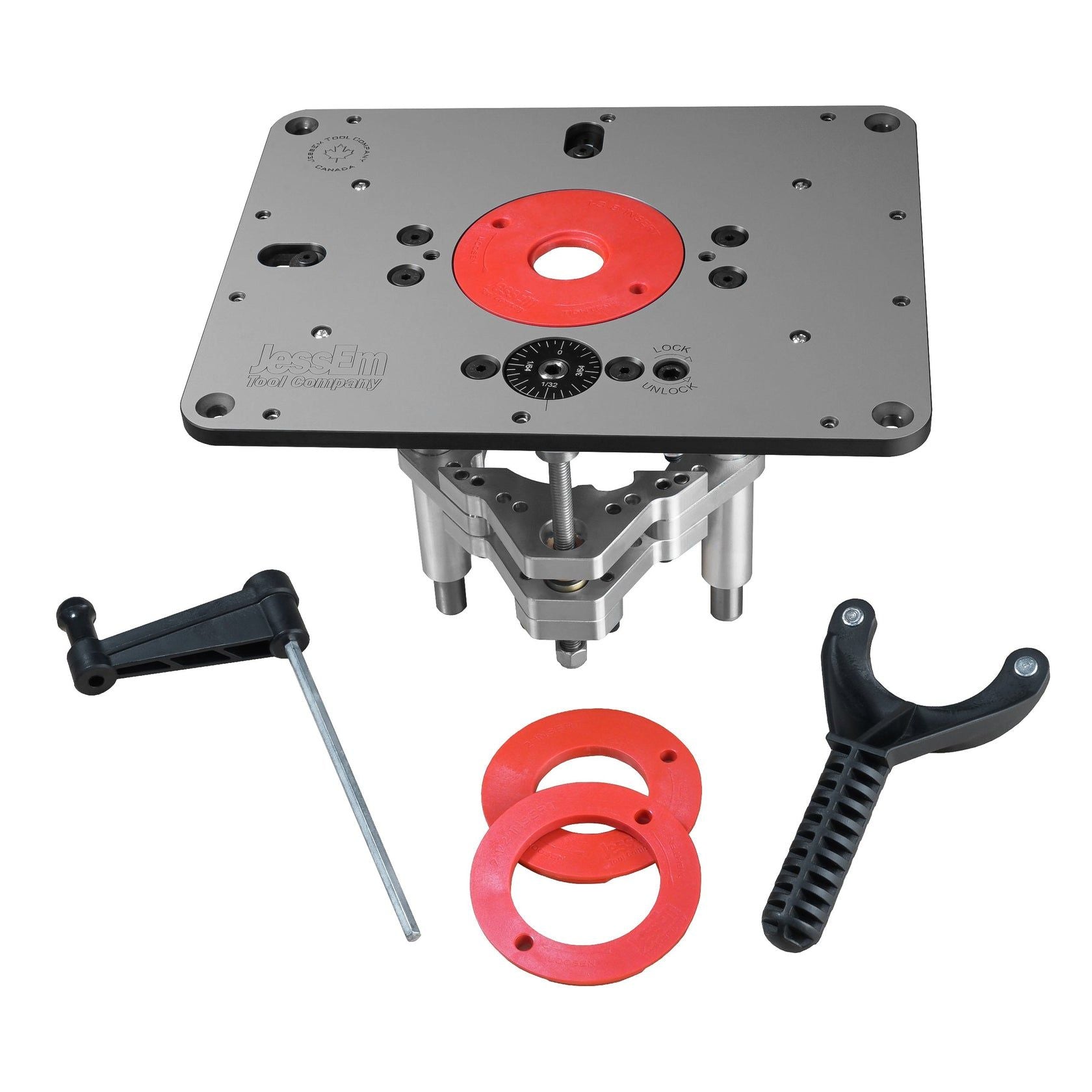

• Comes with 2" Tab-Loc insert ring, insert ring wrench, and start pin
• Spindle mount (1 - R-8 double sealed bearing)
• Top plate 3/8" Solid Phenolic
