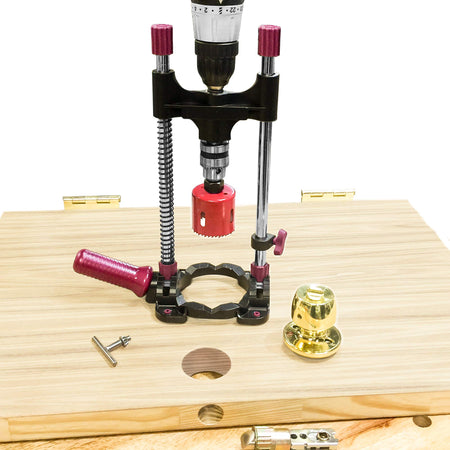

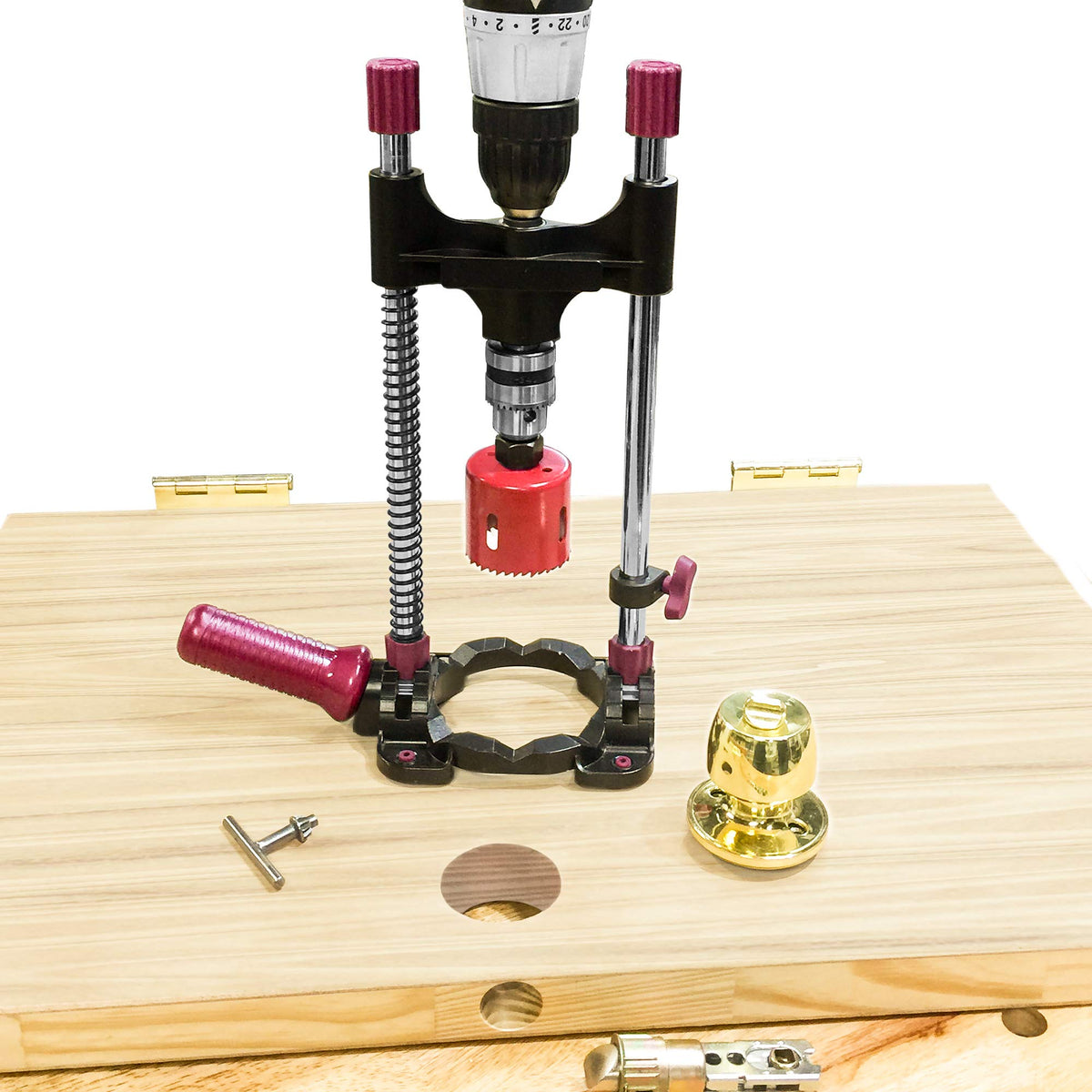

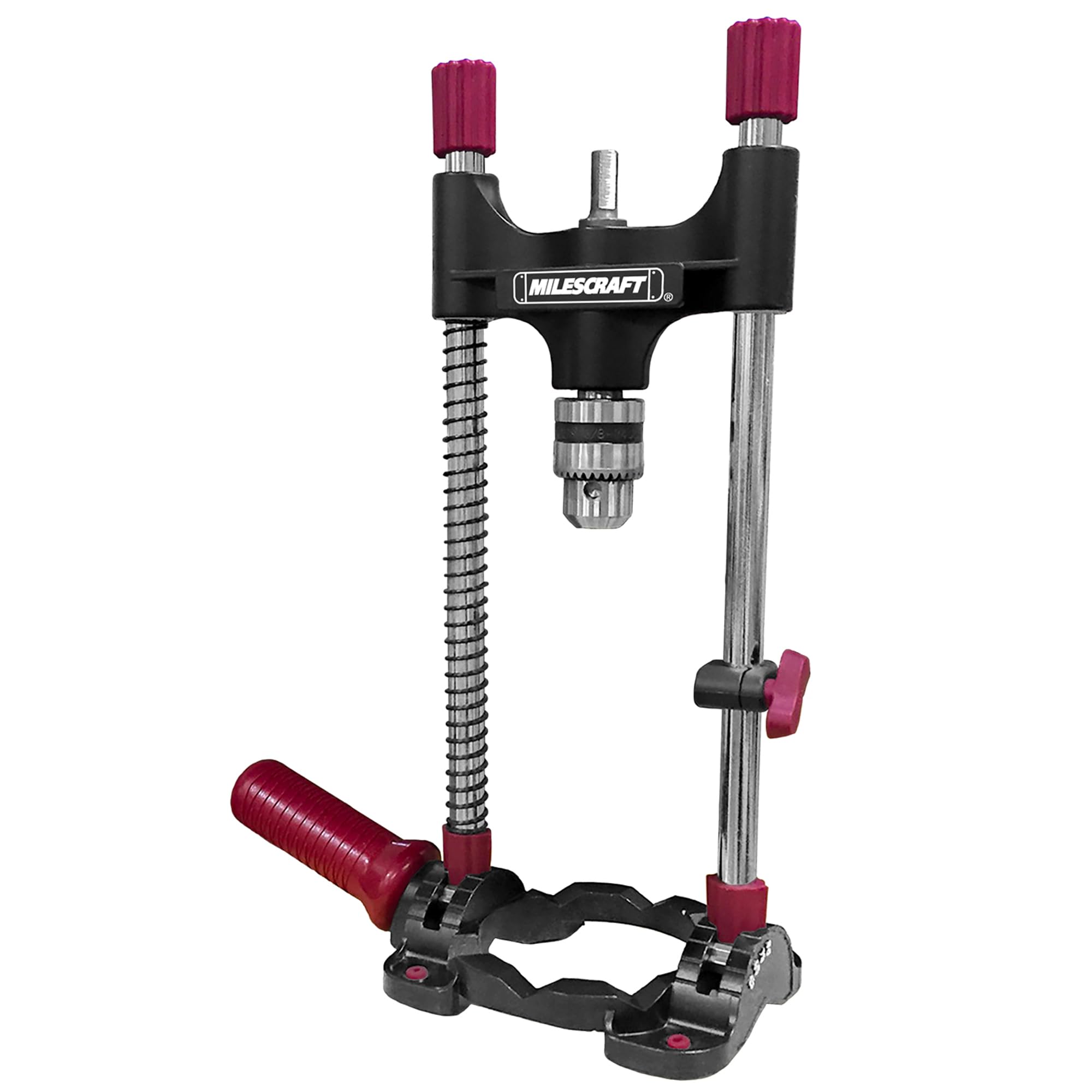

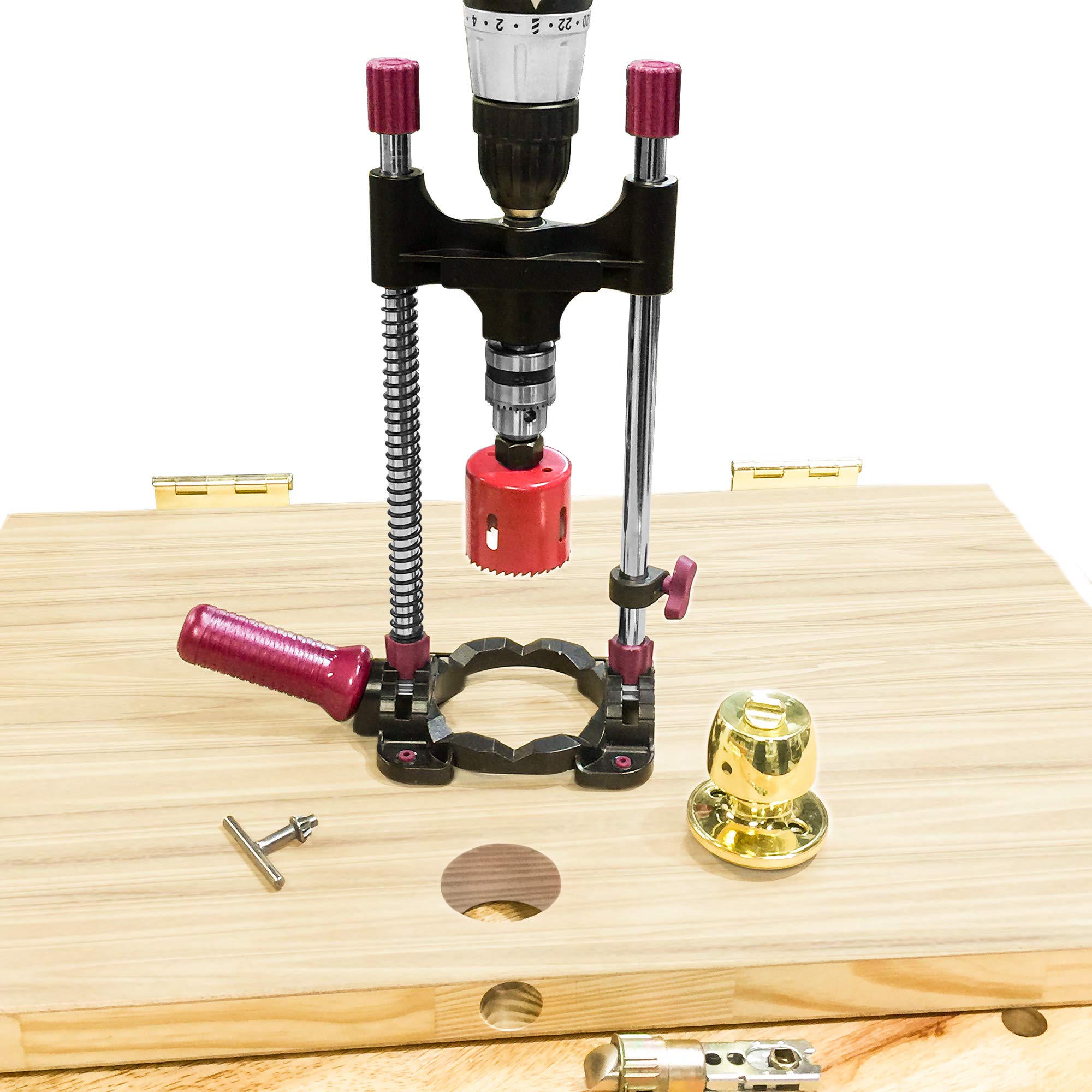

Milescraft 1318 Drillmate (w/ shaft and chuck)

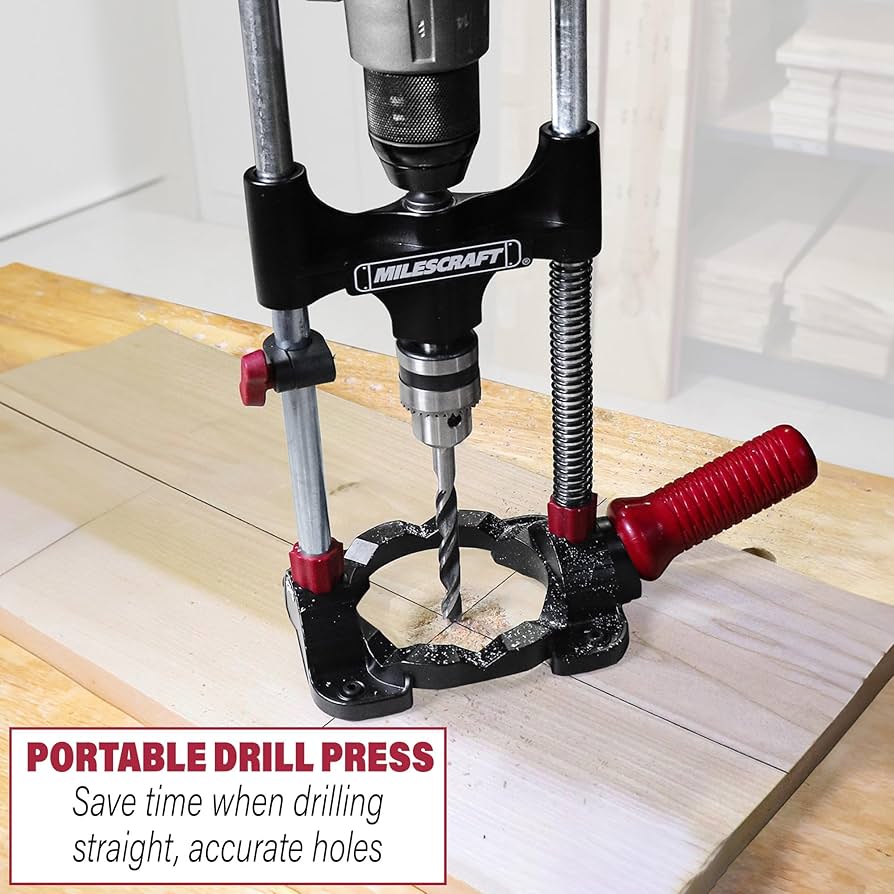

A Portable Drill Guide for Use Almost Anywhere

You can’t take a drill press with you everywhere you go, but you can take a Milescraft® DrillMate™. This portable drill guide makes it quick and easy to drill precise holes at multiple angles. The DrillMate™ saves time and eliminates frustration when drilling multiple holes in all types and shapes of stock.

DrillMate™ Metal Head

• Ball bearings for spindle support

Innovative Metal Base with Angle Readout

• Self-centering drill guide base

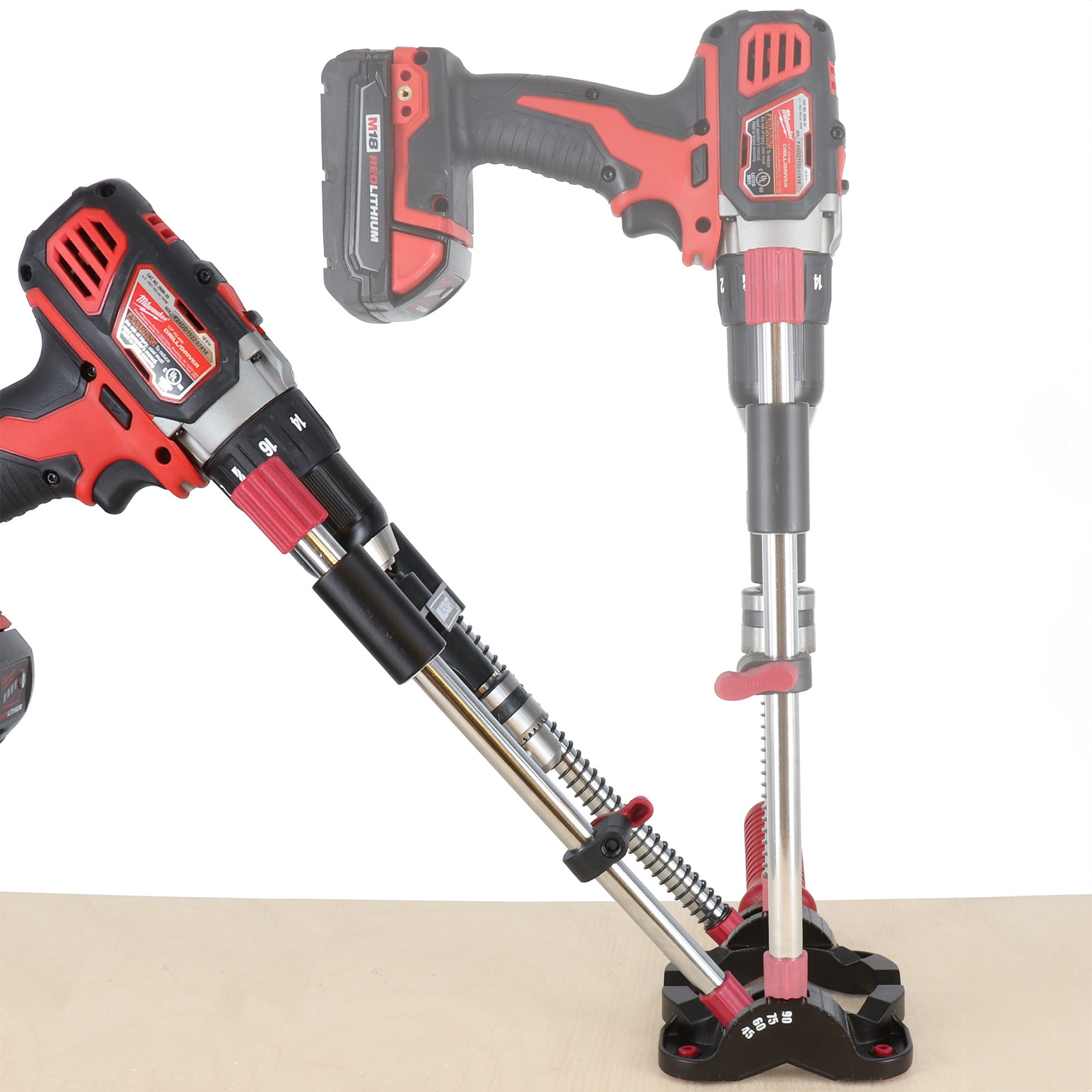

• Angle readout for setting drilling angles to 45°, 60°, 75°, and 90°
• V-groove for drilling on round stock
• Non-slip TPE feet prevent slipping and marring on the work surface
• Mounting holes for mounting with screws when needed

Metal Angle Adjusters

• Allows you to easily lock your selected drilling angle into place

Adjustable Stop Collar

• For repetitive drilling

3/8” Keyed Chuck

• Compatible with most 3/8” drill accessories

Auxiliary Handle

• Can be mounted in a fixed position on the base for maximum support no matter what drilling motion you are doing

• Material:

  Metal and plastic

• Chuck:

  3/8″ Keyed

• Drill Bit Clearance:

  Always: Maximum 7.50″

• Drill Head Clearance without
  Spring and Depth Stop:

  Max Travel: 8.23″
  Minimum Drill Bit Clearance: 0.72″

• Base Opening:

  3-1/2″ in diameter

• Compatible with:

  3/8” and 1/2” power drills

• Spindle Shaft Diameter:

  .47″ (12mm)

• 3/8″ Chuck Thread:

  3/8″ x 24 thread

• Spindle Shaft Length:

  3.66″ (93mm)

• Drill Head Clearance
  with Spring and Depth Stop:

  Max Travel: 6.30″
  Minimum Drill Bit Length: 1.20″

• Base Dimension:

  5.5″ (140mm) x 4.25″ (108mm)

• Guide Bar Diameter:

  .55″ (14mm)

• Inside Distance Between Guide Bars:

  3.98″ (101.2mm)

*Not intended for use with impact drivers or hammer drills.*
