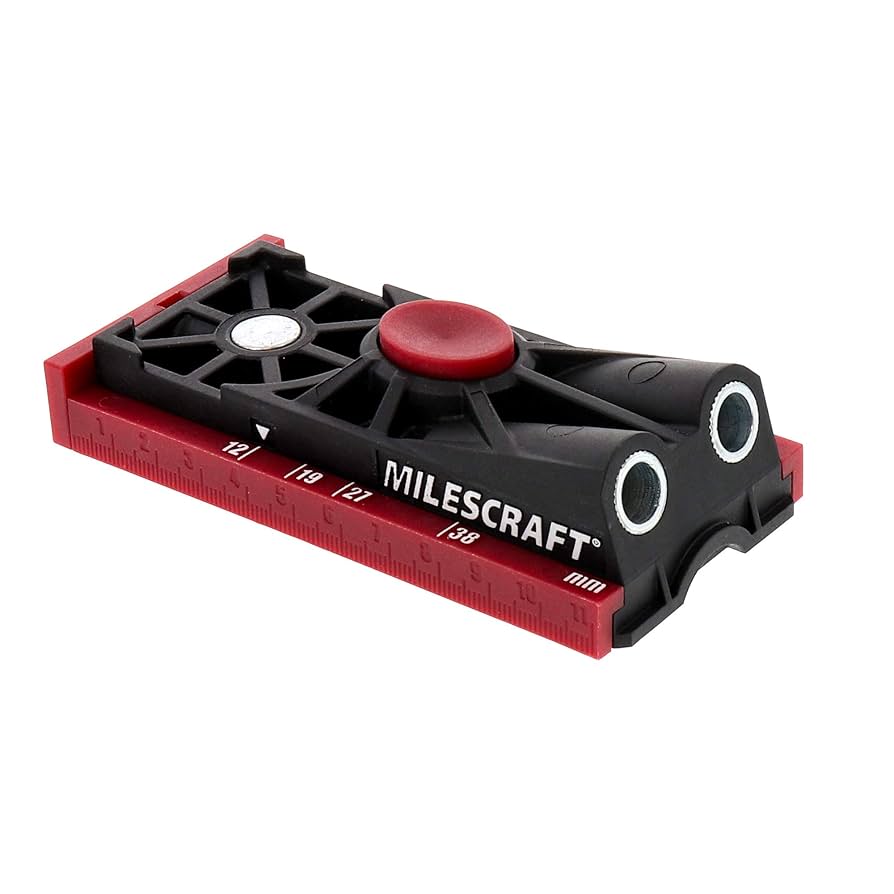

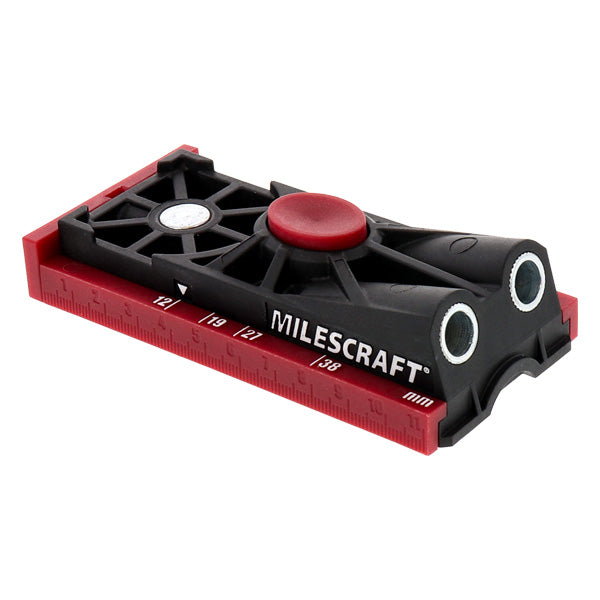

Milescraft, 1325 PocketJig200™

Simple, Quick, Precise Pocket Hole Jig Kit

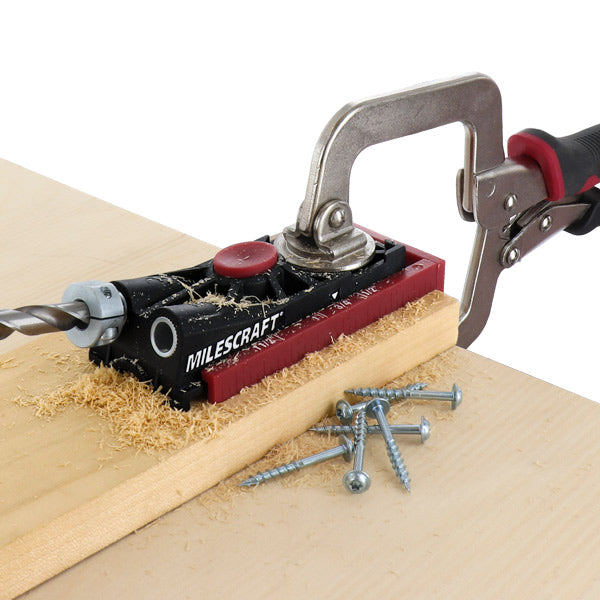

The Milescraft® PocketJig200™ allows you to connect your workpieces quickly with strong and accurate pocket hole joints. Create corner joints, edge joints, T-joints, framing joints, miter joints, and make repairs. With built-in settings for different board thicknesses, just set this pocket jig to your desired setting, set the depth of your bit, and start drilling. This complete kit in a sturdy carrying case comes with all of the bits, drivers, screws and accessories needed to complete any pocket hole project.

PocketJig200™ Pocket Hole Jig Kit – Designed To Make Repairs Simple

• Spring-loaded sled adjust button allows the jig to be set to do repairs of any nature around your home or your shop

Built-In Imperial And Metric Scales

• The built-in scales allow you to easily measure the thickness of your workpiece

Board Thickness Settings

• There are four common board thickness settings built into the pocket jig: 1/2″, 3/4″, 1″ and 1-1/2″ (12, 19, 27, 38mm)
• Easy readout arrow to help define your board thickness setting
• Easily adjust to your board thickness setting with the single sled design and sled adjust button

Hardened Steel Drill Bushings

• For precise and accurate pocket holes every time using the Milescraft PocketBit™
• Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try

Recessed Clamp Pocket with Magnet

• Helps to keep the clamp in the same position as you move to different locations
• With the stronger rare earth magnet, you can easily clamp the jig from one location to another
• For speed and accuracy, use the Milescraft FaceClamps™

Convenient Built-In Depth Setting

• Easily set your bit for the correct drilling depth

3/8″ HSS Step Drill Bit

• Made from high-speed steel the PocketBit with a 1/4″ hex shank is designed to reduce clogging and provide smooth and precise holes

3/8″ Anti-roll, Split Design Stop Collar

• The split design prevents slipping of the set screw when tightened and prevents the bit from rolling
• Includes hex key for tightening

Quick Change Compatible Connector

• With the Milescraft Connector, you can quickly change from drilling to driving
• Accepts all 1/4″ hex bits
• Quickly and easily change from drilling to driving

3″ and 6″ Magnetic T20 Torx® Drivers

• For maximum torque settings without stripping
• To allow pocket screws to align with maximum precision

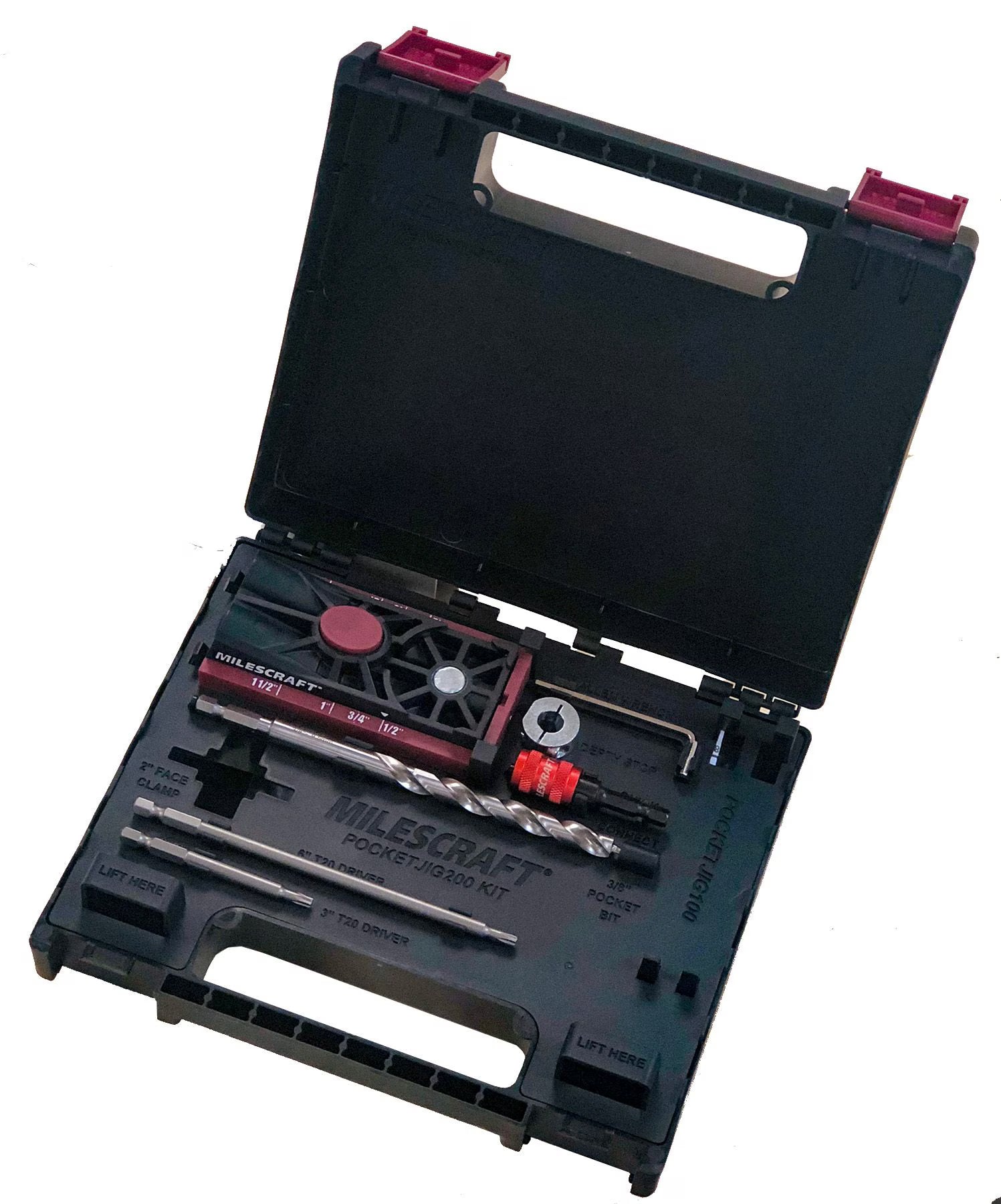

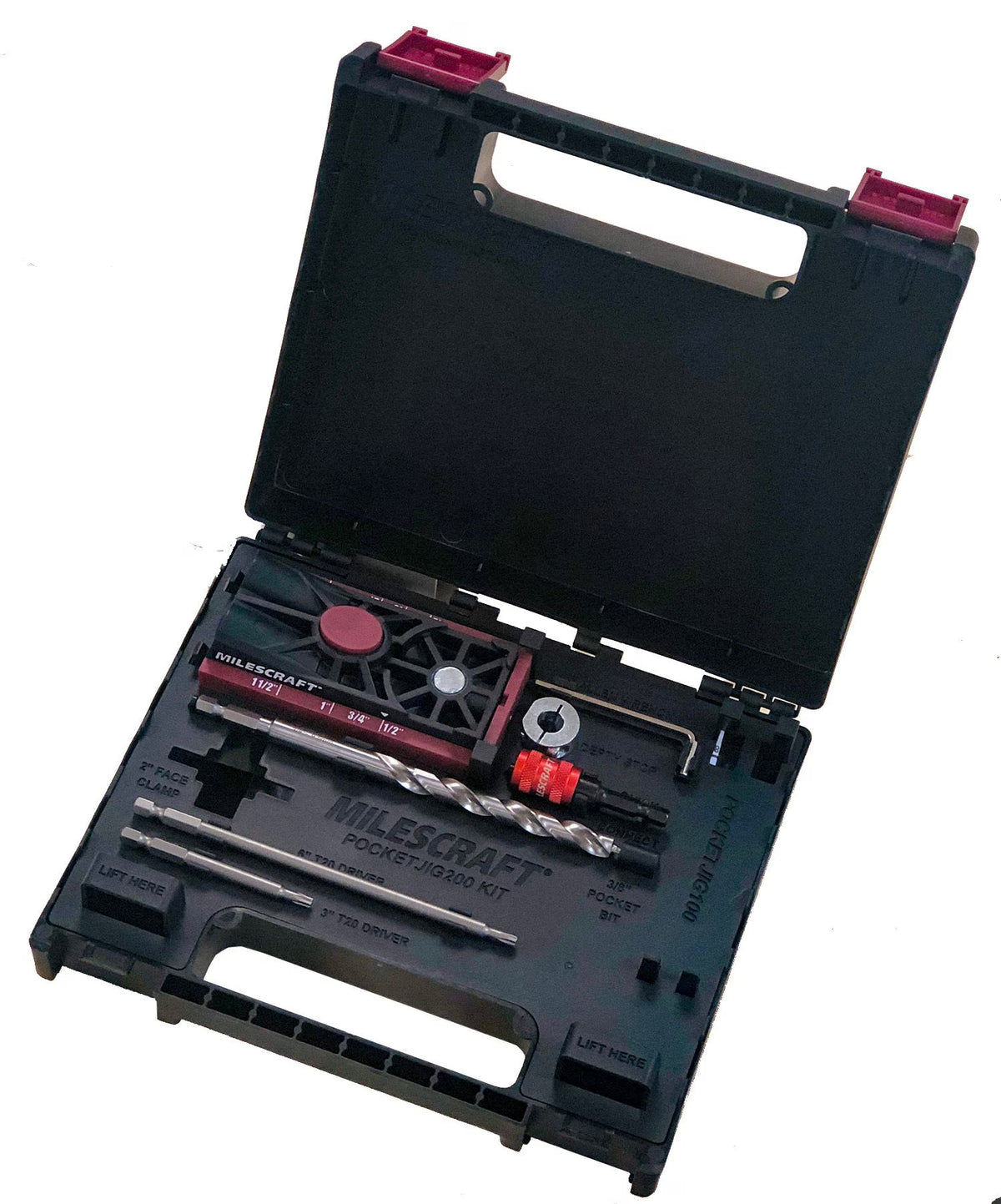

Rugged Storage Case

• With designated places for components, you will never have to go digging through your toolbox for your pocket hole jig again
• Storage compartment for 2″ FaceClamp™
• Storage slot for PocketJig100

Material:
Reinforced Nylon

Drill Guide Bushing Spacing:
1″

Clamping Method:
Works with any clamp

For use with:
Wood Materials for 1/2″ to 1.5 thick (12-38mm)

Drilling Angle:
15°

Screw and Driver Style:
T20 Torx

Screws:
10 of each: 1” (25mm), 1.25” (32mm) coarse and fine, 1.5” (38mm), 2” (51mm), 2.5” (64mm)

Drivers:
3″ T20 Magnetic Head Driver and 6″ T20 Magnetic Head Driver

Pocket Plugs:
10 plugs

Connector:
Accepts all 1/4″ hex bits

Drill Bit:
3/8″ (9.5mm) HSS Pocket Bit with 1/4″ shank

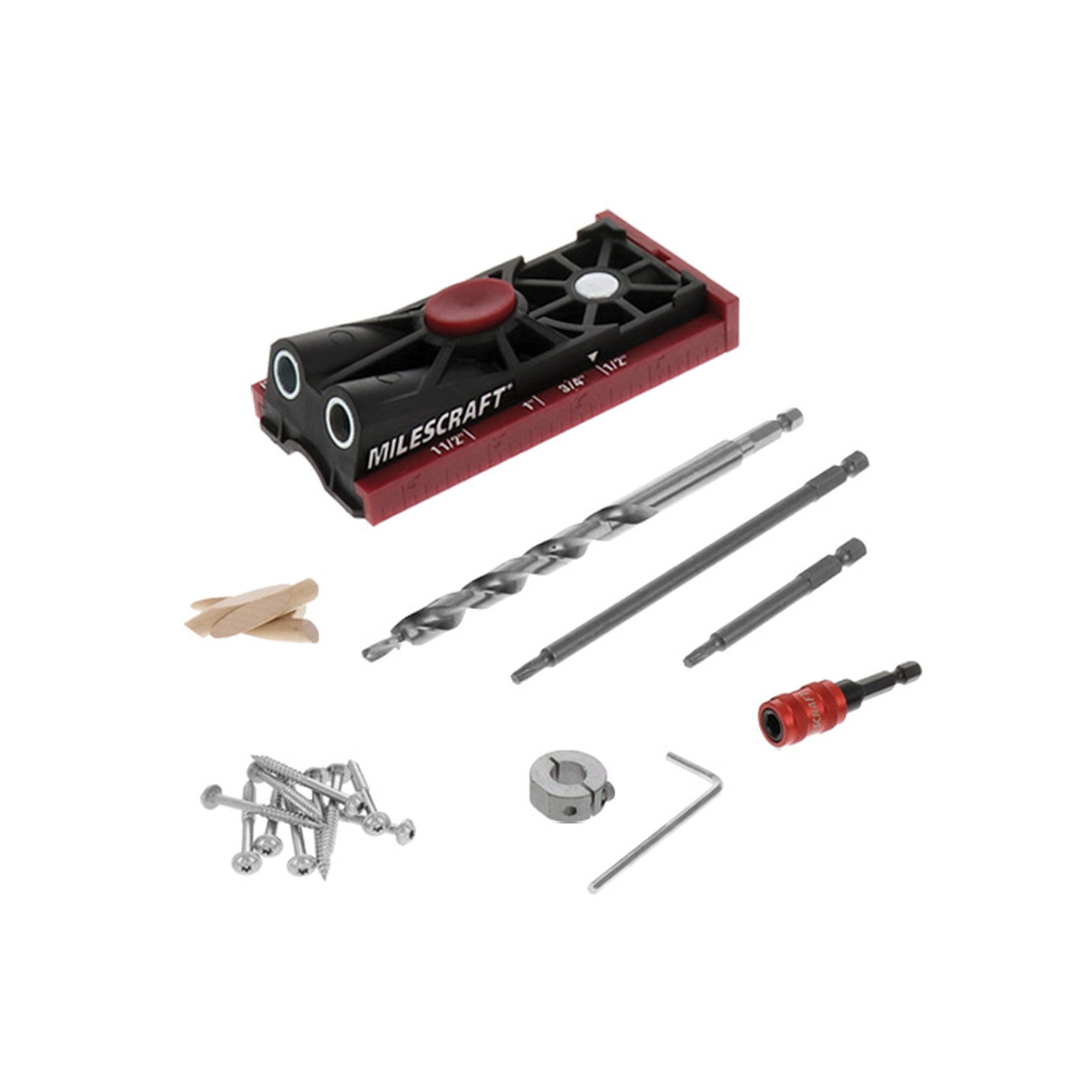

Includes:

• Double Barrel Pocket Hole Jig
• Quick Connect
•  3″ & 6″ T-Star Driver Bits
• 3/8″ PocketBit™
• 60 Piece T20 Pocket Hole Screws
• Pocket Plugs
• 3/8″ Split Design Stop Collar with Hex Key
• Instruction Manual
