Milescraft 1334 JointMaster™

Self-Clamping Doweling Jig, with a Sturdy All-Metal Body

A compact and versatile doweling jig that allows woodworkers to create any dowel joint quickly and accurately. It has two retractable edge stops to quickly line up boards. The self clamping design allows for easy setup.

The JointMaster™ comes with three drill blocks and is capable of creating joints using the most common dowel pin sizes- 1/4″, 5/16” and 3/8”. Each hardened steel drill block is adjustable to accept and align centered dowel holes on boards from 1/2” up to 3”. Built-in scales help to align and center your dowels. The convenient centering marks make sure your holes are where you want them. If you’re using standard 1/2”, 5/8”, 3/4, or 1-1/2” boards, three included Spacer Blocks will automatically align the drill blocks and help you select the appropriate dowel size.

To help eliminate alignment issues, the JointMaster™ has built-in edge stops.  Simply lower, tighten, and rest your boards against them to ensure both boards have their dowel holes in the same position for a solid joint. When creating surface joints, the three dowel alignment slots help you transfer the edge dowel position to the face of your board with ease.

The self-clamping design of the JointMaster™ means no additional clamps are needed to complete your project.  The clamp can be moved from the main body to the clamping wall to create different joints. If required, the clamp body can be removed entirely based on your project needs and your own clamping solution can be used.

When you require professional quality joint work, make sure the Milescraft JointMaster™ is part of your tool arsenal.

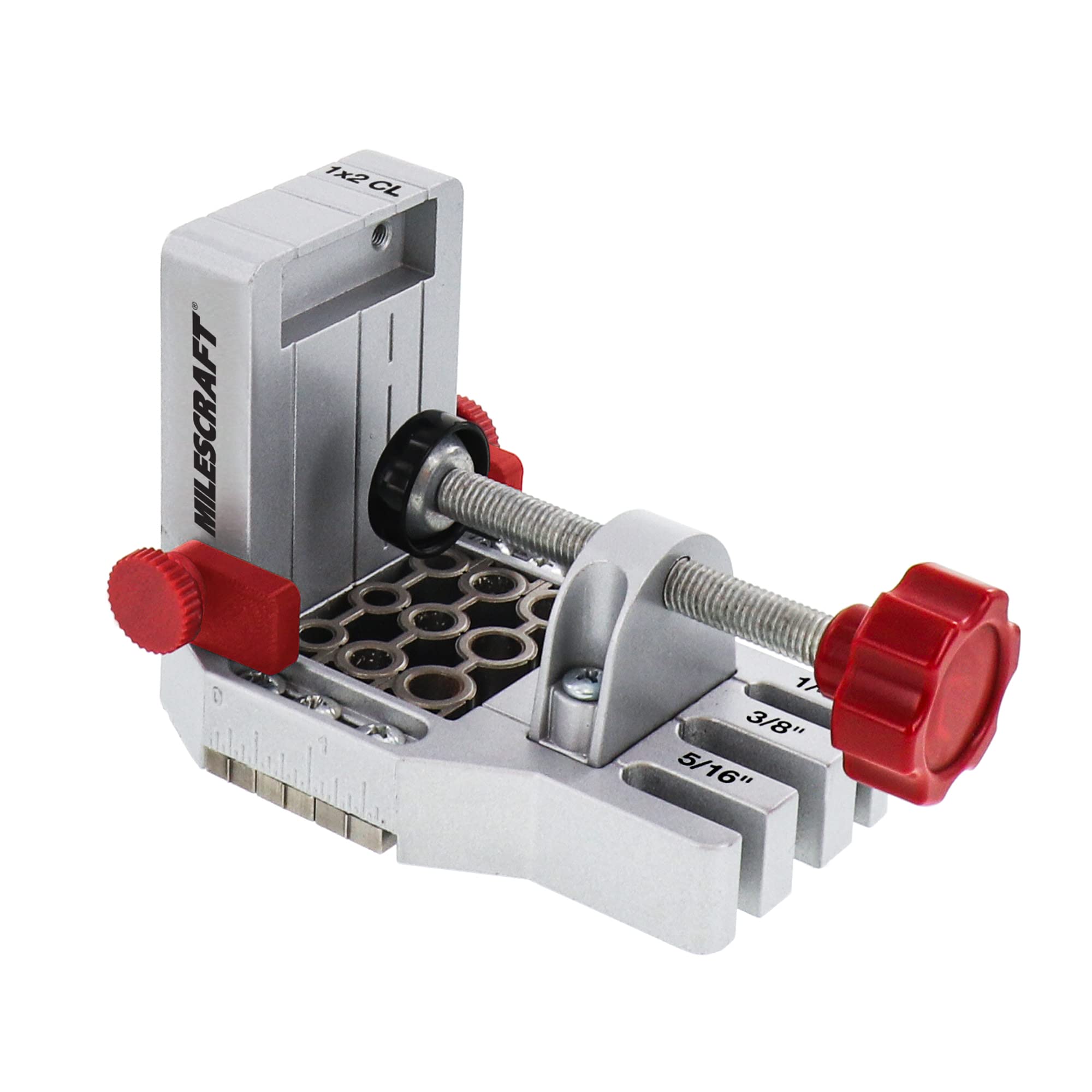

JointMaster Doweling Jig

• A sturdy all-metal body is configurable for edge, corner, and surface joints
• Durable all-aluminum construction won’t flex or bend
• Self-clamping jig securely holds the workpiece in place

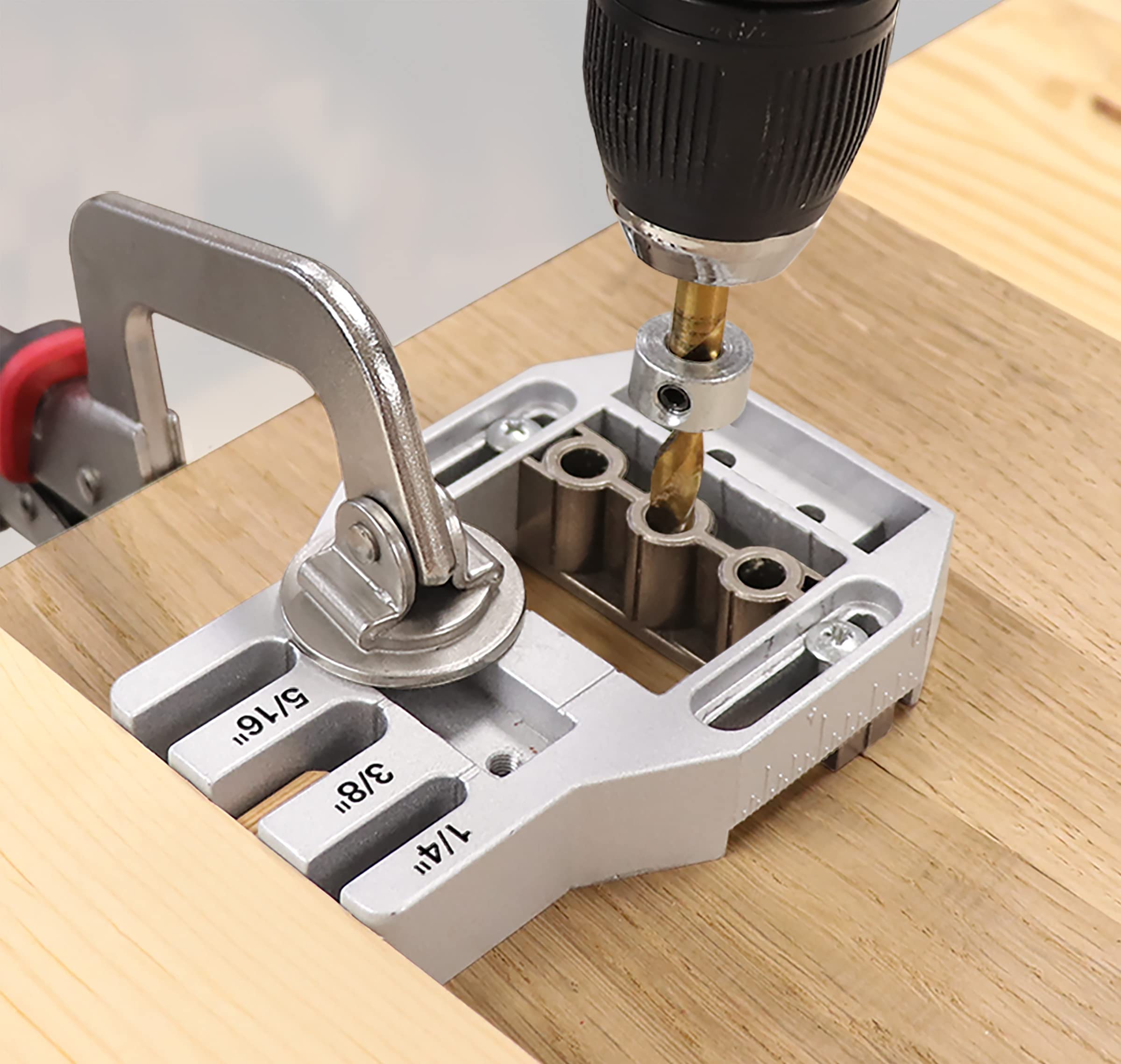

Interchangeable Bushing Blocks

• Hardened steel bushings provide long-lasting, accurate dowel hole drilling
• Drill guide bushing block sizes: 3/8″, 1/4″, 5/16″

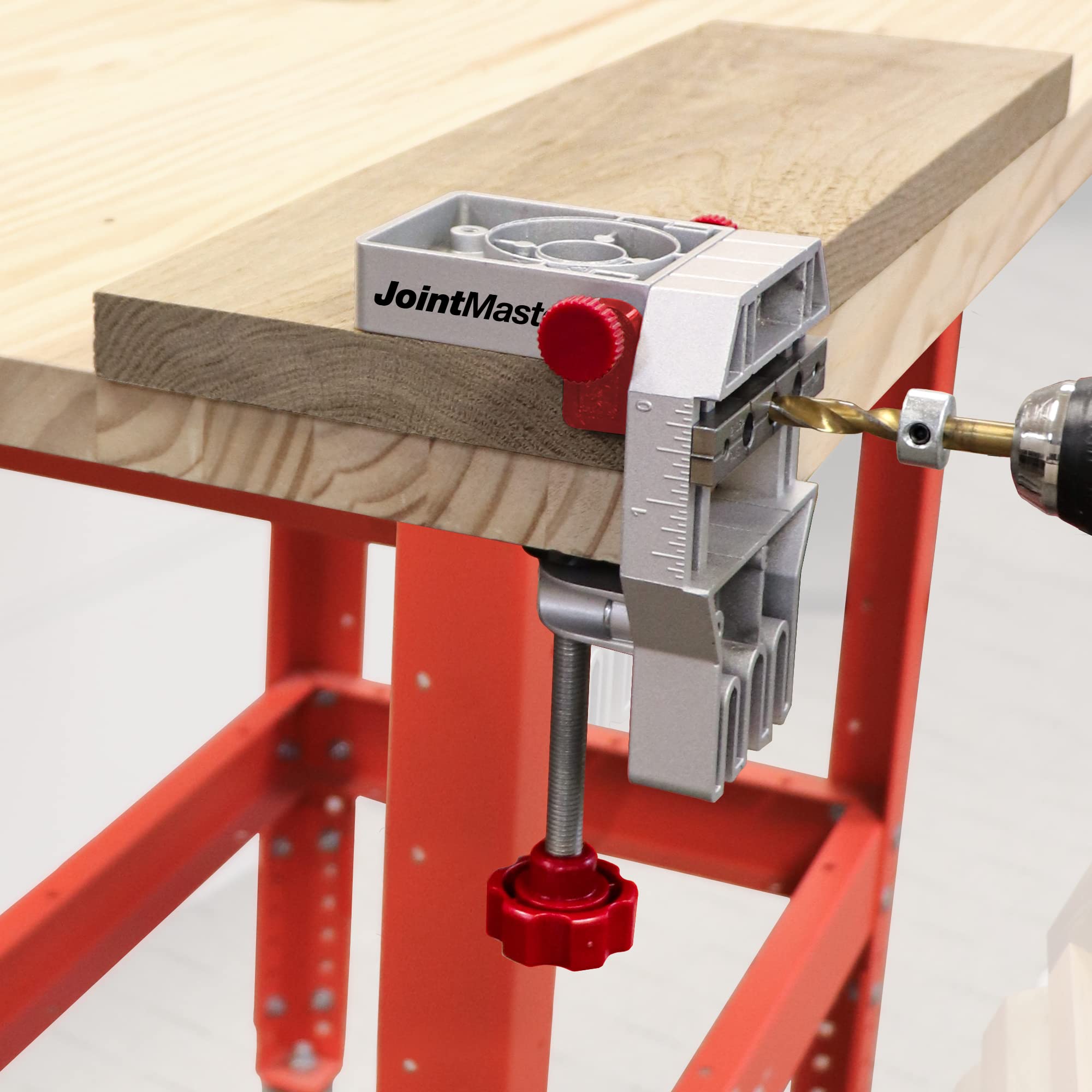

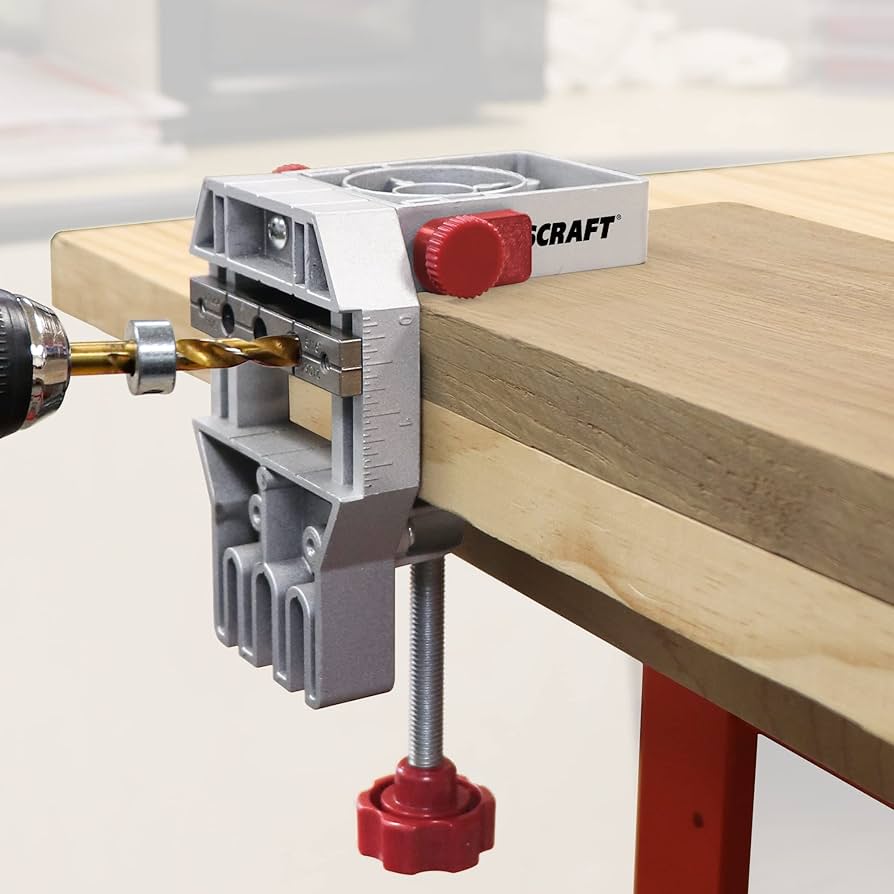

Dual Position Clamping Block with Spindle

• Allow for horizontal or vertical positioning and can be adjusted to either wall to complete multiple joints

Edge Stops and Spacer Blocks

• Retractable edge stops automatically align boards to position dowel pins in the same location.
• Included spacer blocks align the drill guides with the center of your board
• Built-in center finder and pencil included

Non-Slip Pad

• Prevents slipping and marring of the workpiece
